微型交流感应电动机/减速电机
连续运转型

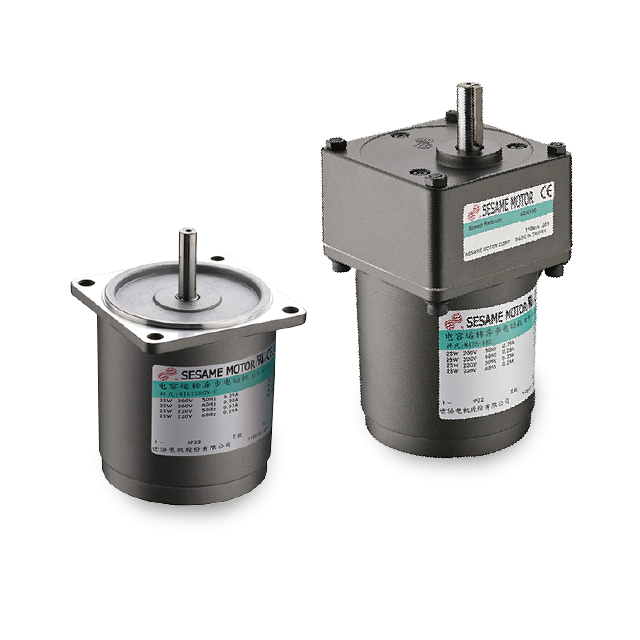

导线式6w-40w
- 交流感应式电动机最适合用于单向、连续运转,最适合用于输送带的驱动等单向连续运转的用途。
- 可轻松运转,只要连接电容器,连接上交流电源,即可轻松运转。(三相电动机时,不需要电容器。)
- (gn或gx螺旋齿轴机型)可与各种减速机组合后,可减速至目标速度,或提高转矩。
交流感应式电动机对应全球安全规格,取得:
- 「中国国家强制性产品认证(ccc certificate)」
- 「ce认证(lvd低电压指令与emc电磁兼容指令)」
- 「ul认证」
导线型
- 防护等级达ip22
- 绝缘阻抗:在常温常湿以额定运转后,线圈及外壳间以dc 500v高阻计量测,测定值在100mω以上。
- 绝缘耐力:在常温常湿以额定运转后,线圈及外壳间以60hz、1.8kv加入一分钟无异状。
- 温度上升:在额定运转后以温度计法测定,温度上升值在75℃以下。
- 周温范围:-10℃~ 50℃(电容器组合电机-10℃~ 40℃)。
- 绝缘等级:e级(120℃)
连续运转型感应式电动机特性图
备注:4极电动机在频率50hz时,同步转速为1500rpm。在60hz时为1800rpm。
6w (1/125 hp) 感应式电动机规格
6w 机型 |
输出功率 (w) |
电压 (v) |
频率 (hz) |
极数 | 额定转速 (rpm) |
额定时间 | 起动转矩 (kg.cm) |
额定转矩 (kg.cm) |
额定电流 (a) |
电容量 (μf) |
2ik6a-a | 6 | 1ø 100/110 | 50/60 | 4 | 1150/1400 | continuous | 0.7/0.63 | 0.51/0.41 | 0.22/0.21 | 2.5/300v |
2ik6a-c | 6 | 1ø 200/220 | 50/60 | 4 | 1150/1550 | continuous | 0.65/0.7 | 0.51/0.54 | 0.1/0.1 | 0.7/450v |
2ik6a-ce | 6 | 1ø 230/240 | 50 | 4 | 1100/1200 | continuous | 0.74/0.77 | 0.55/0.5 | 0.11/0.1 | 0.7/450v |
6w (1/125 hp) 减速电机规格
6w 机型 |
减速机 机型 |
输出功率 (w) |
电压 (v) |
频率 (hz) |
极数 | 额定转速 (rpm) |
额定时间 | 起动转矩 (kg.cm) |
额定转矩 (kg.cm) |
额定电流 (a) |
电容量 (μf) |
2ik6gn-a | 2gn□ke | 6 | 1ø 100/110 | 50/60 | 4 | 1150/1400 | continuous | 0.7/0.63 | 0.51/0.41 | 0.22/0.21 | 2.5/300v |
2ik6gn-c | 6 | 1ø 200/220 | 50/60 | 4 | 1150/1550 | continuous | 0.65/0.7 | 0.51/0.54 | 0.1/0.1 | 0.7/450v | |
2ik6gn-ce | 6 | 1ø 230/240 | 50 | 4 | 1100/1200 | continuous | 0.74/0.77 | 0.55/0.5 | 0.11/0.1 | 0.7/450v |
中间减速机机型: 2gn10x, 2gn10xk (培林)
15w (1/50 hp) 感应式电动机规格
15w 机型 |
输出功率 (w) |
电压 (v) |
频率 (hz) |
极数 | 额定转速 (rpm) |
额定时间 | 起动转矩 (kg.cm) |
额定转矩 (kg.cm) |
额定电流 (a) |
电容量 (μf) |
3ik15a-a | 15 | 1ø 100/110 | 50/60 | 4 | 1200/1600 | continuous | 0.88/1.04 | 1.22/0.91 | 0.36/0.35 | 5/300v |
3ik15a-c | 15 | 1ø 200/220 | 50/60 | 4 | 1150/1600 | continuous | 0.75/1.1 | 1.12/0.93 | 0.18/0.18 | 1.2/450v |
3ik15a-ce | 15 | 1ø 230/240 | 50 | 4 | 1300/1300 | continuous | 1.06/1.06 | 1.14/1.13 | 0.17/0.17 | 1.2/450v |
15w (1/50 hp) 减速电机规格
15w 机型 |
减速机 机型 |
输出功率 (w) |
电压 (v) |
频率 (hz) |
极数 | 额定转速 (rpm) |
额定时间 | 起动转矩 (kg.cm) |
额定转矩 (kg.cm) |
额定电流 (a) |
电容量 (μf) |
3ik15gn-a | 3gn□ke | 15 | 1ø 100/110 | 50/60 | 4 | 1200/1600 | continuous | 0.88/1.04 | 1.22/0.91 | 0.36/0.35 | 5/300v |
3ik15gn-c | 15 | 1ø 200/220 | 50/60 | 4 | 1150/1600 | continuous | 0.75/1.1 | 1.12/0.93 | 0.18/0.18 | 1.2/450v | |
3ik15gn-ce | 15 | 1ø 230/240 | 50 | 4 | 1300/1300 | continuous | 1.06/1.06 | 1.14/1.13 | 0.17/0.17 | 1.2/450v |
中间减速机机型: 3gn10x, 3gn10xk (培林)
25w (1/30 hp) 感应式电动机规格
25w 机型 |
输出功率 (w) |
电压 (v) |
频率 (hz) |
极数 | 额定转速 (rpm) |
额定时间 | 起动转矩 (kg.cm) |
额定转矩 (kg.cm) |
额定电流 (a) |
电容量 (μf) |
4ik25a-a | 25 | 1ø 100/110 | 50/60 | 4 | 1250/1600 | continuous | 1.4/1.4 | 1.93/1.51 | 0.57/0.45 | 6/300v |
4ik25a-c | 25 | 1ø 200/220 | 50/60 | 4 | 1250/1600 | continuous | 1.57/1.38 | 1.91/1.52 | 0.28/0.25 | 1.5/450v |
4ik25a-ce | 25 | 1ø 230/240 | 50 | 4 | 1300/1300 | continuous | 1.38/1.55 | 1.9/1.86 | 0.25/0.24 | 1.5/450v |
4ik25a-s | 25 | 3ø 220 | 50/60 | 4 | 1300/1550 | continuous | 5.12/4.04 | 1.89/1.56 | 0.22/0.19 | - |
4ik25a-u | 25 | 3ø 380 | 50/60 | 4 | 1200/1350 | continuous | 3.96/2.97 | 2.04/1.79 | 0.11/0.11 | - |
25w (1/30 hp) 减速电机规格
25w 机型 |
减速机 机型 |
输出功率 (w) |
电压 (v) |
频率 (hz) |
极数 | 额定转速 (rpm) |
额定时间 | 起动转矩 (kg.cm) |
额定转矩 (kg.cm) |
额定电流 (a) |
电容量 (μf) |
4ik25gn-a | 4gn□ke | 25 | 1ø 100/110 | 50/60 | 4 | 1250/1600 | continuous | 1.4/1.4 | 1.93/1.51 | 0.57/0.45 | 6/300v |
4ik25gn-c | 25 | 1ø 200/220 | 50/60 | 4 | 1250/1600 | continuous | 1.57/1.38 | 1.91/1.52 | 0.28/0.25 | 1.5/450v | |
4ik25gn-ce | 25 | 1ø 230/240 | 50 | 4 | 1300/1300 | continuous | 1.38/1.55 | 1.9/1.86 | 0.25/0.24 | 1.5/450v | |
4ik25gn-s | 25 | 3ø 220 | 50/60 | 4 | 1300/1550 | continuous | 5.12/4.04 | 1.89/1.56 | 0.22/0.19 | - | |
4ik25gn-u | 25 | 3ø 380 | 50/60 | 4 | 1200/1350 | continuous | 3.96/2.97 | 2.04/1.79 | 0.11/0.11 | - |
中间减速机机型: 4gn10x, 4gn10xk (培林)
40w (1/19 hp) 感应式电动机规格
40w 机型 |
输出功率 (w) |
电压 (v) |
频率 (hz) |
极数 | 额定转速 (rpm) |
额定时间 | 起动转矩 (kg.cm) |
额定转矩 (kg.cm) |
额定电流 (a) |
电容量 (μf) |
5ik40a-a | 40 | 1ø 100/110 | 50/60 | 4 | 1250/1600 | continuous | 2.14/2.66 | 3.17/2.41 | 0.87/0.76 | 10/300v |
5ik40a-c | 40 | 1ø 200/220 | 50/60 | 4 | 1300/1650 | continuous | 1.75/2.17 | 3.01/2.35 | 0.4/0.34 | 2.5/450v |
5ik40a-ce | 40 | 1ø 230/240 | 50 | 4 | 1350/1350 | continuous | 2.3/2.58 | 2.87/2.84 | 0.32/0.32 | 2.5/450v |
5ik40a-s | 40 | 3ø 220 | 50/60 | 4 | 1400/1600 | continuous | 10.51/7.83 | 2.83/2.4 | 0.29/0.27 | - |
5ik40a-u | 40 | 3ø 380 | 50/60 | 4 | 1350/1600 | continuous | 9.25/6.68 | 2.85/2.45 | 0.16/0.15 | - |
40w (1/19 hp) 减速电机规格
40w 机型 |
减速机 机型 |
输出功率 (w) |
电压 (v) |
频率 (hz) |
极数 | 额定转速 (rpm) |
额定时间 | 起动转矩 (kg.cm) |
额定转矩 (kg.cm) |
额定电流 (a) |
电容量 (μf) |
5ik40gn-a | 5gn□ke | 40 | 1ø 100/110 | 50/60 | 4 | 1250/1600 | continuous | 2.14/2.66 | 3.17/2.41 | 0.87/0.76 | 10/300v |
5ik40gn-c | 40 | 1ø 200/220 | 50/60 | 4 | 1300/1650 | continuous | 1.75/2.17 | 3.01/2.35 | 0.4/0.34 | 2.5/450v | |
5ik40gn-ce | 40 | 1ø 230/240 | 50 | 4 | 1350/1350 | continuous | 2.3/2.58 | 2.87/2.84 | 0.32/0.32 | 2.5/450v | |
5ik40gn-s | 40 | 3ø 220 | 50/60 | 4 | 1400/1600 | continuous | 10.51/7.83 | 2.83/2.4 | 0.29/0.27 | - | |
5ik40gn-u | 40 | 3ø 380 | 50/60 | 4 | 1350/1600 | continuous | 9.25/6.68 | 2.85/2.45 | 0.16/0.15 | - |
中间减速机机型: 5gn10x, 5gn10xk (培林)

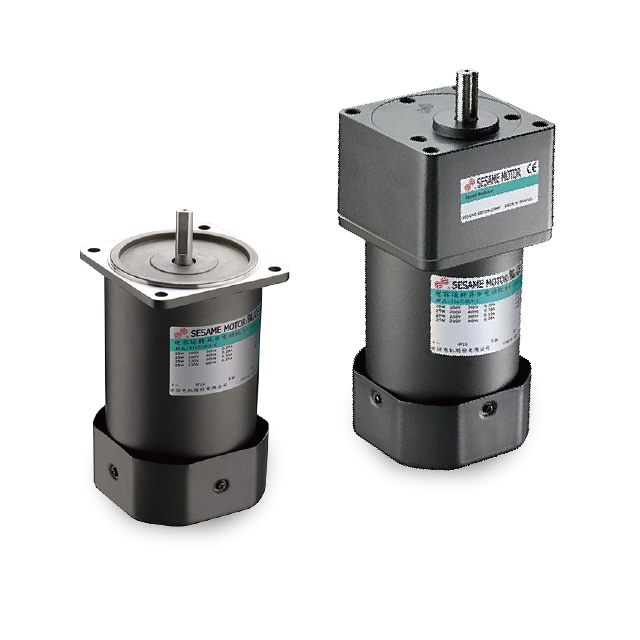

导线式60w-90w
60w (1/12 hp) 感应式电动机规格60w 机型 |
输出功率 (w) |
电压 (v) |
频率 (hz) |
极数 | 额定转速 (rpm) |
额定时间 | 起动转矩 (kg.cm) |
额定转矩 (kg.cm) |
额定电流 (a) |
电容量 (μf) |
5ik60a-af | 60 | 1ø 100/110 | 50/60 | 4 | 1200/1650 | continuous | 2.6/2.94 | 5.0/3.5 | 1.8/1.12 | 16/300v |
5ik60a-cf | 60 | 1ø 200/220 | 50/60 | 4 | 1250/1600 | continuous | 3.62/4.41 | 4.64/3.63 | 0.64/0.54 | 4/450v |
5ik60a-cef | 60 | 1ø 230/240 | 50 | 4 | 1300/1350 | continuous | 4.14/5.22 | 4.56/4.4 | 0.56/0.55 | 4/450v |
5ik60a-sf | 60 | 3ø 220 | 50/60 | 4 | 1300/1550 | continuous | 13.72/10.70 | 4.47/3.77 | 0.41/0.39 | - |
5ik60a-uf | 60 | 3ø 380 | 50/60 | 4 | 1400/1550 | continuous | 14.33/10.15 | 4.2/3.79 | 0.21/0.22 | - |
60w (1/12 hp) 减速电机规格
60w 机型 |
减速机 机型 |
输出功率 (w) |
电压 (v) |
频率 (hz) |
极数 | 额定转速 (rpm) |
额定时间 | 起动转矩 (kg.cm) |
额定转矩 (kg.cm) |
额定电流 (a) |
电容量 (μf) |
5ik60gn-af 5ik60gx-af |
5gn□ke 5gx□k 5gx□kb |
60 | 1ø 100/110 | 50/60 | 4 | 1200/1650 | continuous | 2.6/2.94 | 5.0/3.5 | 1.8/1.12 | 16/300v |
5ik60gn-cf 5ik60gx-cf |
60 | 1ø 200/220 | 50/60 | 4 | 1250/1600 | continuous | 3.62/4.41 | 4.64/3.63 | 0.64/0.54 | 4/450v | |
5ik60gn-cef 5ik60gx-cef |
60 | 1ø 230/240 | 50 | 4 | 1300/1350 | continuous | 4.14/5.22 | 4.56/4.4 | 0.56/0.55 | 4/450v | |
5ik60gn-sf 5ik60gx-sf |
60 | 3ø 220 | 50/60 | 4 | 1300/1550 | continuous | 13.72/10.70 | 4.47/3.77 | 0.41/0.39 | - | |
5ik60gn-uf 5ik60gx-uf |
60 | 3ø 380 | 50/60 | 4 | 1400/1550 | continuous | 14.33/10.15 | 4.2/3.79 | 0.21/0.22 | - |
中间减速机机型: 5gn10x, 5gn10xk (培林), 5gx10xk
90w (1/8 hp) 感应式电动机规格
90w 机型 |
输出功率 (w) |
电压 (v) |
频率 (hz) |
极数 | 额定转速 (rpm) |
额定时间 | 起动转矩 (kg.cm) |
额定转矩 (kg.cm) |
额定电流 (a) |
电容量 (μf) |
5ik90gx-af | 90 | 1ø 100/110 | 50/60 | 4 | 1300/1650 | continuous | 4.76/5.86 | 6.68/5.33 | 1.5/1.41 | 22/250v |
5ik90gx-cf | 90 | 1ø 200/220 | 50/60 | 4 | 1300/1650 | continuous | 4.3/4.21 | 6.89/5.34 | 0.76/0.72 | 5/450v |
5ik90gx-cef | 90 | 1ø 230/240 | 50 | 4 | 1350/1350 | continuous | 4.93/5.08 | 6.44/6.42 | 0.66/0.68 | 5/450v |
5ik90gx-sf | 90 | 3ø 220 | 50/60 | 4 | 1400/1650 | continuous | 23.3/18.25 | 6.4/5.3 | 0.7/0.6 | - |
5ik90gx-uf | 90 | 3ø 380 | 50/60 | 4 | 1400/1650 | continuous | 23.3/18.14 | 6.3/5.3 | 0.4/0.3 | - |
90w (1/8 hp) 减速电机规格
90w 机型 |
减速机 机型 |
输出功率 (w) |
电压 (v) |
频率 (hz) |
极数 | 额定转速 (rpm) |
额定时间 | 起动转矩 (kg.cm) |
额定转矩 (kg.cm) |
额定电流 (a) |
电容量 (μf) |
5ik90gx-af | 5gx□k 5gx□kb |
90 | 1ø 100/110 | 50/60 | 4 | 1300/1650 | continuous | 4.76/5.86 | 6.68/5.33 | 1.5/1.41 | 22/250v |
5ik90gx-cf | 90 | 1ø 200/220 | 50/60 | 4 | 1300/1650 | continuous | 4.3/4.21 | 6.89/5.34 | 0.76/0.72 | 5/450v | |
5ik90gx-cef | 90 | 1ø 230/240 | 50 | 4 | 1350/1350 | continuous | 4.93/5.08 | 6.44/6.42 | 0.66/0.68 | 5/450v | |
5ik90gx-sf | 90 | 3ø 220 | 50/60 | 4 | 1400/1650 | continuous | 23.3/18.25 | 6.4/5.3 | 0.7/0.6 | - | |
5ik90gx-uf | 90 | 3ø 380 | 50/60 | 4 | 1400/1650 | continuous | 23.3/18.14 | 6.3/5.3 | 0.4/0.3 | - |
中间减速机机型: 5gx10xk

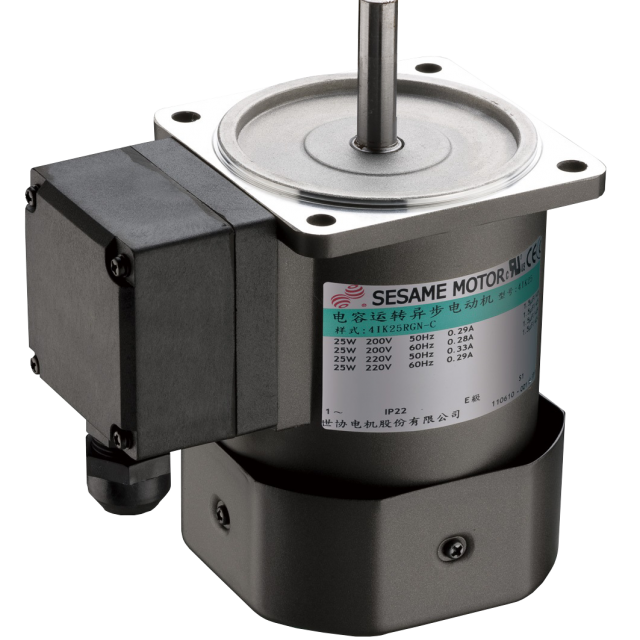

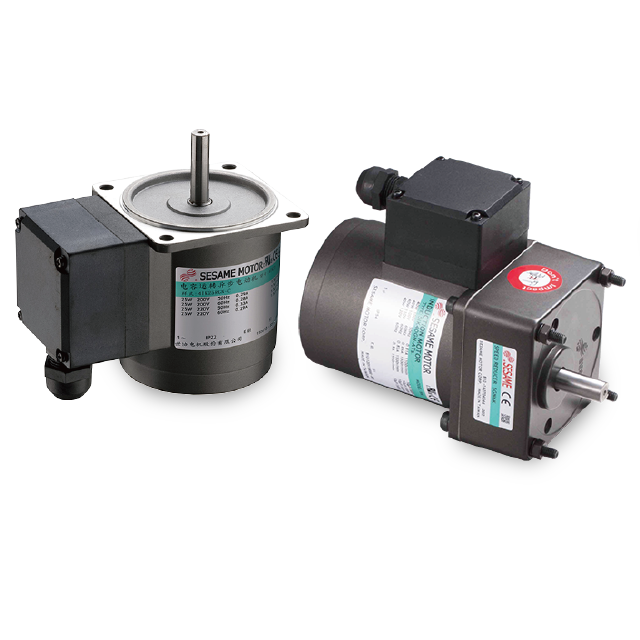

接线盒式6w-40w
6w (1/125 hp) 感应式电动机规格6w 机型 |
输出功率 (w) |
电压 (v) |
频率 (hz) |
极数 | 额定转速 (rpm) |
额定时间 | 起动转矩 (kg.cm) |
额定转矩 (kg.cm) |
额定电流 (a) |
电容量 (μf) |
2ik6a-at | 6 | 1ø 100/110 | 50/60 | 4 | 1150/1400 | continuous | 0.7/0.63 | 0.5/0.41 | 0.22/0.21 | 2.5/300v |
2ik6a-ct | 6 | 1ø 200/220 | 50/60 | 4 | 1150/1550 | continuous | 0.65/0.7 | 0.51/0.54 | 0.1/0.1 | 0.7/450v |
2ik6a-cet | 6 | 1ø 230/240 | 50 | 4 | 1100/1200 | continuous | 0.74/0.77 | 0.55/0.5 | 0.11/0.1 | 0.7/450v |
6w (1/125 hp) 减速电机规格
6w 机型 |
减速机 机型 |
输出功率 (w) |
电压 (v) |
频率 (hz) |
极数 | 额定转速 (rpm) |
额定时间 | 起动转矩 (kg.cm) |
额定转矩 (kg.cm) |
额定电流 (a) |
电容量 (μf) |
2ik6gn-at | 2gn□ke | 6 | 1ø 100/110 | 50/60 | 4 | 1150/1400 | continuous | 0.7/0.63 | 0.5/0.41 | 0.22/0.21 | 2.5/300v |
2ik6gn-ct | 6 | 1ø 200/220 | 50/60 | 4 | 1150/1550 | continuous | 0.65/0.7 | 0.51/0.54 | 0.1/0.1 | 0.7/450v | |
2ik6gn-cet | 6 | 1ø 230/240 | 50 | 4 | 1100/1200 | continuous | 0.74/0.77 | 0.55/0.5 | 0.11/0.1 | 0.7/450v |
中间减速机机型: 2gn10x, 2gn10xk (培林)
15w (1/50 hp) 感应式电动机规格
15w 机型 |
输出功率 (w) |
电压 (v) |
频率 (hz) |
极数 | 额定转速 (rpm) |
额定时间 | 起动转矩 (kg.cm) |
额定转矩 (kg.cm) |
额定电流 (a) |
电容量 (μf) |
3ik15a-at | 15 | 1ø 100/110 | 50/60 | 4 | 1200/1600 | continuous | 0.88/1.04 | 1.22/0.91 | 0.36/0.35 | 5/300v |
3ik15a-ct | 15 | 1ø 200/220 | 50/60 | 4 | 1150/1600 | continuous | 0.75/1.1 | 1.12/0.93 | 0.18/0.18 | 1.2/450v |
3ik15a-cet | 15 | 1ø 230/240 | 50 | 4 | 1300/1300 | continuous | 1.06/1.06 | 1.14/1.13 | 0.17/0.17 | 1.2/450v |
15w (1/50 hp) 减速电机规格
15w 机型 |
减速机 机型 |
输出功率 (w) |
电压 (v) |
频率 (hz) |
极数 | 额定转速 (rpm) |
额定时间 | 起动转矩 (kg.cm) |
额定转矩 (kg.cm) |
额定电流 (a) |
电容量 (μf) |
3ik15gn-at | 3gn□ke | 15 | 1ø 100/110 | 50/60 | 4 | 1200/1600 | continuous | 0.88/1.04 | 1.22/0.91 | 0.36/0.35 | 5/300v |
3ik15gn-ct | 15 | 1ø 200/220 | 50/60 | 4 | 1150/1600 | continuous | 0.75/1.1 | 1.12/0.93 | 0.18/0.18 | 1.2/450v | |
3ik15gn-cet | 15 | 1ø 230/240 | 50 | 4 | 1300/1300 | continuous | 1.06/1.06 | 1.14/1.13 | 0.17/0.17 | 1.2/450v |
中间减速机机型: 3gn10x, 3gn10xk (培林)
25w (1/30 hp) 感应式电动机规格
25w 机型 |
输出功率 (w) |
电压 (v) |
频率 (hz) |
极数 | 额定转速 (rpm) |
额定时间 | 起动转矩 (kg.cm) |
额定转矩 (kg.cm) |
额定电流 (a) |
电容量 (μf) |
4ik25a-at | 25 | 1ø 100/110 | 50/60 | 4 | 1250/1600 | continuous | 1.4/1.4 | 1.93/1.51 | 0.57/0.45 | 6/300v |
4ik25a-ct | 25 | 1ø 200/220 | 50/60 | 4 | 1250/1600 | continuous | 1.57/1.38 | 1.91/1.52 | 0.28/0.25 | 1.5/450v |
4ik25a-cet | 25 | 1ø 230/240 | 50 | 4 | 1300/1300 | continuous | 1.38/1.55 | 1.9/1.86 | 0.25/0.24 | 1.5/450v |
4ik25a-st | 25 | 3ø 220 | 50/60 | 4 | 1300/1550 | continuous | 5.12/4.04 | 1.89/1.56 | 0.22/0.19 | - |
4ik25a-ut | 25 | 3ø 380 | 50/60 | 4 | 1200/1350 | continuous | 3.96/2.97 | 2.04/1.79 | 0.11/0.11 | - |
25w (1/30 hp) 减速电机规格
25w 机型 |
减速机 机型 |
输出功率 (w) |
电压 (v) |
频率 (hz) |
极数 | 额定转速 (rpm) |
额定时间 | 起动转矩 (kg.cm) |
额定转矩 (kg.cm) |
额定电流 (a) |
电容量 (μf) |
4ik25gn-at | 4gn□ke | 25 | 1ø 100/110 | 50/60 | 4 | 1250/1600 | continuous | 1.4/1.4 | 1.93/1.51 | 0.57/0.45 | 6/300v |
4ik25gn-ct | 25 | 1ø 200/220 | 50/60 | 4 | 1250/1600 | continuous | 1.57/1.38 | 1.91/1.52 | 0.28/0.25 | 1.5/450v | |
4ik25gn-cet | 25 | 1ø 230/240 | 50 | 4 | 1300/1300 | continuous | 1.38/1.55 | 1.9/1.86 | 0.25/0.24 | 1.5/450v | |
4ik25gn-st | 25 | 3ø 220 | 50/60 | 4 | 1300/1550 | continuous | 5.12/4.04 | 1.89/1.56 | 0.22/0.19 | - | |
4ik25gn-ut | 25 | 3ø 380 | 50/60 | 4 | 1200/1350 | continuous | 3.96/2.97 | 2.04/1.79 | 0.11/0.11 | - |
中间减速机机型: 4gn10x, 4gn10xk (培林)
40w (1/19 hp) 感应式电动机规格
40w 机型 |
输出功率 (w) |
电压 (v) |
频率 (hz) |
极数 | 额定转速 (rpm) |
额定时间 | 起动转矩 (kg.cm) |
额定转矩 (kg.cm) |
额定电流 (a) |
电容量 (μf) |
5ik40a-at | 40 | 1ø 100/110 | 50/60 | 4 | 1250/1600 | continuous | 2.14/2.66 | 3.17/2.41 | 0.87/0.76 | 10/300v |
5ik40a-ct | 40 | 1ø 200/220 | 50/60 | 4 | 1300/1650 | continuous | 1.75/2.17 | 3.01/2.35 | 0.4/0.34 | 2.5/450v |
5ik40a-cet | 40 | 1ø 230/240 | 50 | 4 | 1350/1350 | continuous | 2.3/2.58 | 2.87/2.84 | 0.32/0.32 | 2.5/450v |
5ik40a-st | 40 | 3ø 220 | 50/60 | 4 | 1400/1600 | continuous | 10.51/7.83 | 2.83/2.4 | 0.29/0.27 | - |
5ik40a-ut | 40 | 3ø 380 | 50/60 | 4 | 1350/1600 | continuous | 9.25/6.68 | 2.85/2.45 | 0.16/0.15 | - |
40w (1/19 hp) 减速电机规格
40w 机型 |
减速机 机型 |
输出功率 (w) |
电压 (v) |
频率 (hz) |
极数 | 额定转速 (rpm) |
额定时间 | 起动转矩 (kg.cm) |
额定转矩 (kg.cm) |
额定电流 (a) |
电容量 (μf) |
5ik40gn-at | 5gn□ke | 40 | 1ø 100/110 | 50/60 | 4 | 1250/1600 | continuous | 2.14/2.66 | 3.17/2.41 | 0.87/0.76 | 10/300v |
5ik40gn-ct | 40 | 1ø 200/220 | 50/60 | 4 | 1300/1650 | continuous | 1.75/2.17 | 3.01/2.35 | 0.4/0.34 | 2.5/450v | |
5ik40gn-cet | 40 | 1ø 230/240 | 50 | 4 | 1350/1350 | continuous | 2.3/2.58 | 2.87/2.84 | 0.32/0.32 | 2.5/450v | |
5ik40gn-st | 40 | 3ø 220 | 50/60 | 4 | 1400/1600 | continuous | 10.51/7.83 | 2.83/2.4 | 0.29/0.27 | - | |
5ik40gn-ut | 40 | 3ø 380 | 50/60 | 4 | 1350/1600 | continuous | 9.25/6.68 | 2.85/2.45 | 0.16/0.15 | - |
中间减速机机型: 5gn10x, 5gn10xk (培林)
接线盒式60w-90w
60w (1/12 hp) 感应式电动机规格60w 机型 |
输出功率 (w) |
电压 (v) |
频率 (hz) |
极数 | 额定转速 (rpm) |
额定时间 | 起动转矩 (kg.cm) |
额定转矩 (kg.cm) |
额定电流 (a) |
电容量 (μf) |
5ik60a-aft | 60 | 1ø 100/110 | 50/60 | 4 | 1200/1650 | continuous | 2.6/2.94 | 5.0/3.5 | 1.8/1.12 | 16/300v |
5ik60a-cft | 60 | 1ø 200/220 | 50/60 | 4 | 1250/1600 | continuous | 3.62/4.41 | 4.64/3.63 | 0.64/0.54 | 4/450v |
5ik60a-ceft | 60 | 1ø 230/240 | 50 | 4 | 1300/1350 | continuous | 4.14/5.22 | 4.56/4.4 | 0.56/0.55 | 4/450v |
5ik60a-sft | 60 | 3ø 220 | 50/60 | 4 | 1300/1550 | continuous | 13.72/10.70 | 4.47/3.77 | 0.41/0.39 | - |
5ik60a-uft | 60 | 3ø 380 | 50/60 | 4 | 1400/1550 | continuous | 14.33/10.15 | 4.2/3.79 | 0.21/0.22 | - |
60w (1/12 hp) 减速电机规格
60w 机型 |
减速机 机型 |
输出功率 (w) |
电压 (v) |
频率 (hz) |
极数 | 额定转速 (rpm) |
额定时间 | 起动转矩 (kg.cm) |
额定转矩 (kg.cm) |
额定电流 (a) |
电容量 (μf) |
5ik60gn-aft 5ik60gx-aft |
5gn□ke 5gx□k 5gx□kb |
60 | 1ø 100/110 | 50/60 | 4 | 1200/1650 | continuous | 2.6/2.94 | 5.0/3.5 | 1.8/1.12 | 16/300v |
5ik60gn-cft 5ik60gx-cft |
60 | 1ø 200/220 | 50/60 | 4 | 1250/1600 | continuous | 3.62/4.41 | 4.64/3.63 | 0.64/0.54 | 4/450v | |
5ik60gn-ceft 5ik60gx-ceft |
60 | 1ø 230/240 | 50 | 4 | 1300/1350 | continuous | 4.14/5.22 | 4.56/4.4 | 0.56/0.55 | 4/450v | |
5ik60gn-sft 5ik60gx-sft |
60 | 3ø 220 | 50/60 | 4 | 1300/1550 | continuous | 13.72/10.70 | 4.47/3.77 | 0.41/0.39 | - | |
5ik60gn-uft 5ik60gx-uft |
60 | 3ø 380 | 50/60 | 4 | 1400/1550 | continuous | 14.33/10.15 | 4.2/3.79 | 0.21/0.22 | - |
中间减速机机型: 5gn10x, 5gn10xk (培林), 5gx10xk
90w (1/12 hp) 感应式电动机规格
90w 机型 |
输出功率 (w) |
电压 (v) |
频率 (hz) |
极数 | 额定转速 (rpm) |
额定时间 | 起动转矩 (kg.cm) |
额定转矩 (kg.cm) |
额定电流 (a) |
电容量 (μf) |
5ik90gx-aft | 90 | 1ø 100/110 | 50/60 | 4 | 1300/1650 | continuous | 4.76/5.86 | 6.68/5.33 | 1.5/1.41 | 22/250v |
5ik90gx-cft | 90 | 1ø 200/220 | 50/60 | 4 | 1300/1650 | continuous | 4.3/4.21 | 6.89/5.34 | 0.76/0.72 | 5/450v |
5ik90gx-ceft | 90 | 1ø 230/240 | 50 | 4 | 1350/1350 | continuous | 4.93/5.08 | 6.44/6.42 | 0.66/0.68 | 5/450v |
5ik90gx-sft | 90 | 3ø 220 | 50/60 | 4 | 1400/1650 | continuous | 23.3/18.25 | 6.4/5.3 | 0.7/0.6 | - |
5ik90gx-uft | 90 | 3ø 380 | 50/60 | 4 | 1400/1650 | continuous | 23.3/18.14 | 6.3/5.3 | 0.4/0.3 | - |
90w (1/8 hp) 减速电机规格
90w 机型 |
减速机 机型 |
输出功率 (w) |
电压 (v) |
频率 (hz) |
极数 | 额定转速 (rpm) |
额定时间 | 起动转矩 (kg.cm) |
额定转矩 (kg.cm) |
额定电流 (a) |
电容量 (μf) |
5ik90gx-aft | 5gx□k 5gx□kb |
90 | 1ø 100/110 | 50/60 | 4 | 1300/1650 | continuous | 4.76/5.86 | 6.68/5.33 | 1.5/1.41 | 22/250v |
5ik90gx-cft | 90 | 1ø 200/220 | 50/60 | 4 | 1300/1650 | continuous | 4.3/4.21 | 6.89/5.34 | 0.76/0.72 | 5/450v | |
5ik90gx-ceft | 90 | 1ø 230/240 | 50 | 4 | 1350/1350 | continuous | 4.93/5.08 | 6.44/6.42 | 0.66/0.68 | 5/450v | |
5ik90gx-sft | 90 | 3ø 220 | 50/60 | 4 | 1400/1650 | continuous | 23.3/18.25 | 6.4/5.3 | 0.7/0.6 | - | |
5ik90gx-uft | 90 | 3ø 380 | 50/60 | 4 | 1400/1650 | continuous | 23.3/18.14 | 6.3/5.3 | 0.4/0.3 | - |
中间减速机机型: 5gx10xk
