montierter typ (us-凯发官方

ausgangsleistung von 6 w bis 40 w

• problemlose verdrahtung und drehzahlregelung.
• schaltungen, kondensatoren und regelwiderstände sind im regler eingebaut, der über ein verlängertes kabel mit dem motor verbunden ist.
• einsatzbereit, sobald strom zugeführt wird.
• ausgangsleistung von 6 w bis 90 w
• betriebsweise mit reduktionsgetriebe ist verfügbar (motor mit ritzelwelle, gn- oder gx-modell)

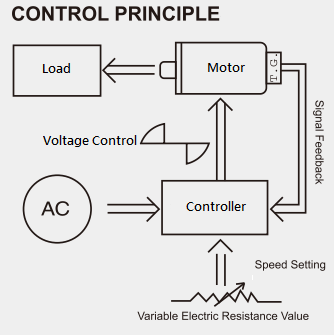

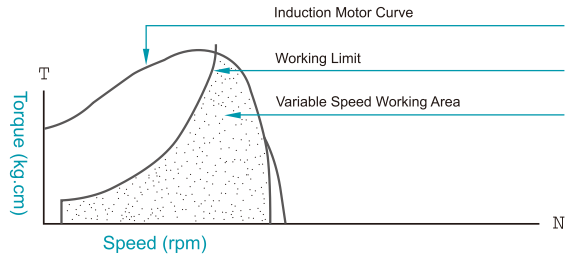

drehzahl-drehmomentkurve

  assembled type speed controlled motors & gear motors specifications

6w (1/125 hp) motors
6w (1/125 hp) gear motors

6w model

gearhead model

rated time (min.)

output (w)

voltage (v)

freq. (hz)

pole (p)

rated current (a)

variable speed range (rpm)

starting torque (kg.cm)

max. torque (kg.cm)

1200rpm

90rpm

continuous

m206-401

2gn□ke

continuous

6

100/110

50/60

4

0.22/0.21

90~1400/90~1700

0.7/0.63

0.4/0.55

0.72/0.5

m206-402

200/220

50/60

0.1/0.1

90~1400/90~1700

0.65/0.7

0.44/0.66

0.6/0.7

m206-402e

230/240

50

0.11/0.1

90~1400

0.74/0.77

0.39/0.52

0.72/0.8

reversible

m206-411

30

6

100/110

50/60

4

0.24/0.25

90~1400/90~1700

0.72/0.7

0.3/0.49

0.6/0.52

m206-412

200/220

50/60

0.13/0.15

90~1400/90~1700

0.72/0.8

0.26/0.52

0.67/0.7

m206-412e

230/240

50

0.14/0.14

90~1400

0.95/0.94

0.36/0.31

0.8/0.8

□=ratio 1-180
m206-0xx round shaft dim. (pdf)
m206-4xx pinion shaft (helical gear) dim. (pdf)
gearhead 2gn□ke dim. (pdf)
decimal gearhead 2gn10x(k) dim. (pdf)

---

15w (1/50 hp) motors

15w model		rated time (min.)	output (w)	voltage (v)	freq. (hz)	pole (p)	rated current (a)	variable speed range (rpm)	starting torque (kg.cm)	max. torque (kg.cm)
										1200rpm	90rpm
continuous	m315-001	continuous	15	100/110	50/60	4	0.36/0.35	90~1400/90~1700	0.88/1.04	0.9/1.5	1.0/1.1
	m315-002			200/220	50/60		0.18/0.18	90~1400/90~1700	0.75/1.1	1.1/1.5	1.0/1.1
	m315-002e			230/240	50		0.17/0.17	90~1400	1.06/1.06	1.40/1.32	1.02/1.25
reversible	m315-011	30	15	100/110	50/60	4	0.37/0.44	90~1400/90~1700	1.17/1.24	0.1/1.2	0.9/0.85
	m315-012			200/220	50/60		0.2/0.23	90~1400/90~1700	0.96/1.34	1.4/1.2	0.9/0.85
	m315-012e			230/240	50		0.19/0.21	90~1400	1.36/1.31	1.52/1.4	1.2/1.1

15w (1/50 hp) gear motors

15w model

gearhead model

rated time (min.)

output (w)

voltage (v)

freq. (hz)

pole (p)

rated current (a)

variable speed range (rpm)

starting torque (kg.cm)

max. torque (kg.cm)

1200rpm

90rpm

continuous

m315-401

3gn□ke

continuous

15

100/110

50/60

4

0.36/0.35

90~1400/90~1700

0.88/1.04

0.9/1.5

1.0/1.1

m315-402

200/220

50/60

0.18/0.18

90~1400/90~1700

0.75/1.1

1.1/1.5

1.0/1.1

m315-402e

230/240

50

0.17/0.17

90~1400

1.06/1.06

1.40/1.32

1.02/1.25

reversible

m315-411

30

15

100/110

50/60

4

0.37/0.44

90~1400/90~1700

1.17/1.24

0.1/1.2

0.9/0.85

m315-412

200/220

50/60

0.2/0.23

90~1400/90~1700

0.96/1.34

1.4/1.2

0.9/0.85

m315-412e

230/240

50

0.19/0.21

90~1400

1.36/1.31

1.52/1.4

1.2/1.1

□=ratio 1-180
m315-0xx round shaft dim. (pdf)
m315-4xx pinion shaft (helical gear) dim. (pdf)
gearhead 3gn□ke dim. (pdf)
decimal gearhead 3gn10x(k) dim. (pdf)

---

25w (1/30 hp) motors

25w model		rated time (min.)	output (w)	voltage (v)	freq. (hz)	pole (p)	rated current (a)	variable speed range (rpm)	starting torque (kg.cm)	max. torque (kg.cm)
										1200rpm	90rpm
continuous	m425-001	continuous	25	100/110	50/60	4	0.57/0.45	90~1400/90~1700	1.4/1.4	2.17/2.5	1.4/1.4
	m425-002			200/220	50/60		0.28/0.25	90~1400/90~1700	1.57/1.38	2.1/2.4	1.6/1.3
	m425-002e			230/240	50		0.25/0.24	90~1400	1.38/1.55	2.2/2.4	1.5/1.7
reversible	m425-011	30	25	100/110	50/60	4	0.56/0.51	90~1400/90~1700	1.65/1.92	2.2/2.9	1.5/1.9
	m425-012			200/220	50/60		0.29/0.3	90~1400/90~1700	1.98/1.94	2.4/2.6	1.9/1.8
	m425-012e			230/240	50		0.25/0.25	90~1400	2.22/2.19	2.7/2.9	2.24/2.3

25w (1/30 hp) gear motors

25w model

gearhead model

rated time (min.)

output (w)

voltage (v)

freq. (hz)

pole (p)

rated current (a)

variable speed range (rpm)

starting torque (kg.cm)

max. torque (kg.cm)

1200rpm

90rpm

continuous

m425-401

4gn□ke

continuous

25

100/110

50/60

4

0.57/0.45

90~1400/90~1700

1.4/1.4

2.17/2.5

1.4/1.4

m425-402

200/220

50/60

0.28/0.25

90~1400/90~1700

1.57/1.38

2.1/2.4

1.6/1.3

m425-402e

230/240

50

0.25/0.24

90~1400

1.38/1.55

2.2/2.4

1.5/1.7

reversible

m425-411

30

25

100/110

50/60

4

0.56/0.51

90~1400/90~1700

1.65/1.92

2.2/2.9

1.5/1.9

m425-412

200/220

50/60

0.29/0.3

90~1400/90~1700

1.98/1.94

2.4/2.6

1.9/1.8

m425-412e

230/240

50

0.25/0.25

90~1400

2.22/2.19

2.7/2.9

2.24/2.3

□=ratio 1-180
m425-0xx round shaft dim. (pdf)
m425-4xx pinion shaft (helical gear) dim. (pdf)
gearhead 4gn□ke dim. (pdf)
decimal gearhead 4gn10x(k) dim. (pdf)

---

40w (1/19 hp) motors

40w model		rated time (min)	output (w)	voltage (v)	freq. (hz)	pole (p)	current (a)	variable speed range (rpm)	starting torque (kg.cm)	max. torque (kg.cm)
										1200rpm	90rpm
continuous	m540-001	continuous	40	100/110	50/60	4	0.87/0.76	90~1400/90~1700	2.14/2.66	3.18/4.2	2.2/2.8
	m540-002			200/220	50/60		0.4/0.34	90~1400/90~1700	1.75/2.17	3.6/4.2	1.8/2.1
	m540-002e			230/240	50		0.32/0.32	90~1400	2.3/2.58	4.4/4.6	2.4/2.6
reversible	m540-011	30	40	100/110	50/60	4	0.99/1.01	90~1400/90~1700	2.43/3.1	2.8/3.4	1.9/2.4
	m540-012			200/220	50/60		0.54/0.53	90~1400/90~1700	3.76/2.37	3/3.4	3/2.2
	m540-012e			230/240	50		0.49/0.44	90~1400	2.41/3.17	3/3.9	2/2.6

40w (1/19 hp) gear motors

40w model

gearhead model

rated time (min)

output (w)

voltage (v)

freq. (hz)

pole (p)

current (a)

variable speed range (rpm)

starting torque (kg.cm)

max. touque (kg.cm)

1200rpm

90rpm

continuous

m540-401

5gn□ke

continuous

40

100/110

50/60

4

0.87/0.76

90~1400/90~1700

2.14/2.66

3.18/4.2

2.2/2.8

m540-402

200/220

50/60

0.4/0.34

90~1400/90~1700

1.75/2.17

3.6/4.2

1.8/2.1

m540-402e

230/240

50

0.32/0.32

90~1400

2.3/2.58

4.4/4.6

2.4/2.6

reversible

m540-411

30

40

100/110

50/60

4

0.99/1.01

90~1400/90~1700

2.43/3.1

2.8/3.4

1.9/2.4

m540-412

200/220

50/60

0.54/0.53

90~1400/90~1700

3.76/2.37

3/3.4

3/2.2

m540-412e

230/240

50

0.49/0.44

90~1400

2.41/3.17

3/3.9

2/2.6

□=ratio 1-180
m540-0xx round shaft dim. (pdf)
m540-4xx pinion shaft (helical gear) dim. (pdf)
gearhead 5gn□ke dim. (pdf)
decimal gearhead 5gn10x(k) dim. (pdf)

ausgangsleistung von 60 w bis 90 w

• problemlose verdrahtung und drehzahlregelung.
• schaltungen, kondensatoren und regelwiderstände sind im regler eingebaut, der über ein verlängertes kabel mit dem motor verbunden ist.
• einsatzbereit, sobald strom zugeführt wird.
• ausgangsleistung von 6 w bis 90 w
• betriebsweise mit reduktionsgetriebe ist verfügbar (motor mit ritzelwelle, gn- oder gx-modell)

drehzahl-drehmomentkurve

  assembled type speed controlled motors & gear motors specifications

60w (1/12 hp) motors
60w (1/12 hp) gear motors □=ratio 1-180
m560-0xx round shaft dim. (pdf)
m560-4xx pinion shaft (helical gear) dim. (pdf)
m560-6xx pinion shaft (helical gear 5gx) dim. (pdf)
gearhead 5gn□ke、5gx□k、5gx□kb，□=ratio 1-180，dim. (pdf)  (dwg)  (step)
gearhead 5gn□ke dim. (pdf)
gearhead 5gx□k dim. (pdf)
gearhead 5gx□kb dim. (pdf)
decimal gearhead 5gn10x(k) dim. (pdf)
decimal gearhead 5gx10xk dim. (pdf)

---

90w (1/8 hp) motors
90w (1/8 hp) gear motors □=ratio 1-180
m590-0xx round shaft dim. (pdf)
m590-6xx pinion shaft (helical gear) dim. (pdf)
gearhead 5gx□k、5gx□kb，□=ratio 1-180，dim. (pdf)  (dwg)  (step)
gearhead 5gx□k dim. (pdf)
gearhead 5gx□kb dim. (pdf)
decimal gearhead 5gx10xk dim. (pdf)
