  • standard ac reversible motors offer a wide selection with reliable performance, forward or reverse operation.
  • variable ac power input options.
  • output 6w up to 90w.
  • ce (emc & lvd), ul, ccc certified.
  • wide ranges of model work with magnetic brake, control circuits and speed reducer (motor with pinion shaft, gn or gx model).

reversible motors characteristic

world k series, single-phase
6w (1/125 hp) reversible motors specifications
6w
model
output
(w)
voltage
(v)
freq.
(hz)
pole  rated speed
(rpm)
rated time
(min.)
starting torque
(kg.cm)
 rated torque
(kg.cm)
rated current
(a)
capacitor
(μf)
2rk6a-a 6 1ø 100/110 50/60 4 900/ 1150 30 0.72/ 0.7 0.57/ 0.51 0.24/ 0.25 3.3/300v
3/300v
2rk6a-c 6  1ø 200/220 50/60 4 1000/ 1300 30 0.72/ 0.8 0.55/ 0.45 0.13/ 0.15 1/450v
2rk6a-ce 6  1ø 230/240 50 4 1100/ 1050 30 0.95/ 0.94 0.53/ 0.55 0.14/ 0.14 1/450v

6w (1/125 hp) reversible gear motors specifications
6w motor
model
gearhead
model
output
(w)
voltage
(v)
freq.
(hz)
pole  rated speed
(rpm)
rated time
(min.)
starting torque
(kg.cm)
 rated torque
(kg.cm)
rated current
(a)
capacitor
(μf)
2rk6gn-a 2gn□ke 6 1ø 100/110 50/60 4 900/ 1150 30 0.72/ 0.7 0.57/ 0.51 0.24/ 0.25 3.3/300v
3/300v
2rk6gn-c 6  1ø 200/220 50/60 4 1000/ 1300 30 0.72/ 0.8 0.55/ 0.45 0.13/ 0.15 1/450v
2rk6gn-ce 6  1ø 230/240 50 4 1100/ 1050 30 0.95/ 0.94 0.53/ 0.55 0.14/ 0.14 1/450v
□ = gear ratio, 3-180
decimal (intermediate) gearhead model: 2gn10x, 2gn10xk (ball bearing)
2rk6a - round shaft dim. (pdf)
2rk6gn - pinion shaft (helical gear) dim. (pdf)
gearhead 2gn□ke dim. (pdf)
decimal gearhead 2gn10x(k) dim. (pdf)
15w (1/50 hp) reversible motors specifications
15w
model
output
(w)
voltage
(v)
freq.
(hz)
pole  rated speed
(rpm)
rated time
(min.)
starting torque
(kg.cm)
 rated torque
(kg.cm)
rated current
(a)
capacitor
(μf)
3rk15a-a 15 1ø 100/110 50/60 4 1200/1450 30 1.17/1.24 1.16/0.95 0.37/0.44 6/300v
3rk15a-c 15 1ø 200/220 50/60 4 1200/1450 30 0.96/1.34 0.96/0.97 0.20/0.23 1.5/450v
3rk15a-ce 15 1ø 230/240 50 4 1250 30 1.36/1.31 1.14/1.19 0.19/0.21 1.5/450v

15w (1/50 hp) reversible gear motors specifications
15w motor
model
gearhead
model
output
(w)
voltage
(v)
freq.
(hz)
pole  rated speed
(rpm)
rated time
(min.)
starting torque
(kg.cm)
 rated torque
(kg.cm)
rated current
(a)
capacitor
(μf)
3rk15gn-a 3gn□ke 15 1ø 100/110 50/60 4 1200/1450 30 1.17/1.24 1.16/0.95 0.37/0.44 6/300v
3rk15gn-c 15 1ø 200/220 50/60 4 1200/1450 30 0.96/1.34 0.96/0.97 0.20/0.23 1.5/450v
3rk15gn-ce 15 1ø 230/240 50 4 1250 30 1.36/1.31 1.14/1.19 0.19/0.21 1.5/450v
□ = gear ratio, 3-180
decimal (intermediate) gearhead model: 3gn10x, 3gn10xk (ball bearing)
3rk15a - round shaft dim. (pdf)
3rk15gn - pinion shaft (helical gear) dim. (pdf)
gearhead 3gn□ke dim. (pdf)
decimal gearhead 3gn10x(k) dim. (pdf)
25w (1/30 hp) reversible motors specifications
25w
model
output
(w)
voltage
(v)
freq.
(hz)
pole  rated speed
(rpm)
rated time
(min.)
starting torque
(kg.cm)
 rated torque
(kg.cm)
rated current
(a)
capacitor
(μf)
 4rk25a-a 25 1ø 100/110 50/60 4  1250/1650 30 1.65/1.92 1.95/1.48 0.56/0.51 8/300v
 4rk25a-c 25 1ø 200/220 50/60 4  1300/1600 30  1.98/1.94 1.89/1.94 0.29/0.30 2.5/450v
2/450v
 4rk25a-ce 25 1ø 230/240 50 4  1350/1350 30 2.22/2.19 1.8/1.82 0.25/0.25 2/450v

25w (1/30 hp) reversible gear motors specifications
25w motor
model
gearhead
model
output
(w)
voltage
(v)
freq.
(hz)
pole  rated speed
(rpm)
rated time
(min.)
starting torque
(kg.cm)
 rated torque
(kg.cm)
rated current
(a)
capacitor
(μf)
 4rk25gn-a 4gn□ke 25 1ø 100/110 50/60 4  1250/1650  30 1.65/1.92 1.95/1.48 0.56/0.51 8/300v
 4rk25gn-c 25 1ø 200/220 50/60 4  1300/1600 30  1.98/1.94 1.89/1.94 0.29/0.30 2.5/450v
2/450v
 4rk25gn-ce 25 1ø 230/240 50 4  1350/1350 30 2.22/2.19 1.8/1.82 0.25/0.25 2/450v
□ = gear ratio, 3-180
decimal (intermediate) gearhead model: 4gn10x, 4gn10xk (ball bearing)
4rk25a - round shaft dim. (pdf)
4rk25gn - pinion shaft (helical gear) dim. (pdf)
gearhead 4gn□ke dim. (pdf)
decimal gearhead 4gn10x(k) dim. (pdf)
40w (1/19 hp) reversible motors specifications
40w
model
output
(w)
voltage
(v)
freq.
(hz)
pole  rated speed
(rpm)
rated time
(min.)
starting torque
(kg.cm)
 rated torque
(kg.cm)
rated current
(a)
capacitor
(μf)
5rk40a-a 40 1ø 100/110 50/60 4  1050/1500 30 2.43/3.1 2.53/2.64 0.99/1.01 12/300v
5rk40a-c 40 1ø 200/220 50/60 4  1150/1500 30  3.76/2.73 3.35/2.64 0.54/0.53 4/450v
3/350v
5rk40a-ce 40 1ø 230/240 50 4 1150/1300 30 2.41/3.17 3.36/3.04 0.49/0.44 3/450v

40w (1/19 hp) reversible gear motors specifications
40w motor
model
gearhead
model
output
(w)
voltage
(v)
freq.
(hz)
pole  rated speed
(rpm)
rated time
(min.)
starting torque
(kg.cm)
 rated torque
(kg.cm)
rated current
(a)
capacitor
(μf)
5rk40gn-a 5gn□ke 40 1ø 100/110 50/60 4  1050/1500 30 2.43/3.1 2.53/2.64 0.99/1.01 12/300v
5rk40gn-c 40 1ø 200/220 50/60 4  1150/1500 30  3.76/2.73 3.35/2.64 0.54/0.53 4/450v
3/350v
5rk40gn-ce 40 1ø 230/240 50 4 1150/1300 30 2.41/3.17 3.36/3.04 0.49/0.44 3/450v
□ = gear ratio, 3-180
decimal (intermediate) gearhead model: 5gn10x, 5gn10xk (ball bearing)
5rk40a - round shaft dim. (pdf)
5rk40gn - pinion shaft (helical gear) dim. (pdf)
gearhead 5gn□ke dim. (pdf)
decimal gearhead 5gn10x(k) dim. (pdf)
lead wire type 60w

lead wire type 60w

  • standard ac reversible motors offer a wide selection with reliable performance, forward or reverse operation.
  • variable ac power input options.
  • output 6w up to 90w.
  • ce (emc & lvd), ul, ccc certified.
  • wide ranges of model work with magnetic brake, control circuits and speed reducer (motor with pinion shaft, gn or gx model).

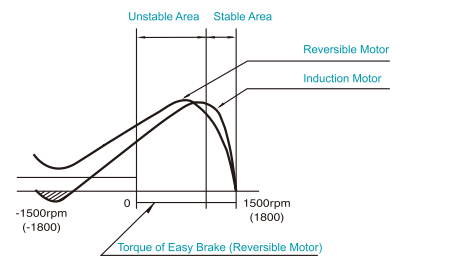

reversible motors characteristic

world k series, single-phase
60w (1/12 hp) motors specifications
60w
model
output
(w)
voltage
(v)
freq.
(hz)
pole  rated speed
(rpm)
rated time
(min.)
starting torque
(kg.cm)
 rated torque
(kg.cm)
rated current
(a)
capacitor
(μf)
 5rk60a-af 60 1ø 100/110 50/60 4 1300/1600 30 3.08/4.03 4.82/3.78 1.34/1.25 16/300v
 5rk60a-cf 60 1ø 200/220 50/60 4 1250/1600 30 2.38/2.97 4.68/3.68 0.75/0.73 4/450v
 5rk60a-cef 60 1ø 230/240 50 4 1300 30 4.33/4.72 4.59/4.6 0.57/0.63 4/450v

60w (1/12 hp) gear motors specifications
60w motor
model
gearhead
model
output
(w)
voltage
(v)
freq.
(hz)
pole  rated speed
(rpm)
rated time
(min.)
starting torque
(kg.cm)
 rated torque
(kg.cm)
rated current
(a)
capacitor
(μf)
5rk60gn-af
5rk60gx-af
5gn□ke
5gx□k
5gx□kb
60 1ø 100/110 50/60 4 1300/1600 30 3.08/4.03 4.82/3.78 1.34/1.25 16/300v
5rk60gn-cf
5rk60gx-cf
60 1ø 200/220 50/60 4 1250/1600 30 2.38/2.97 4.68/3.68 0.75/0.73 4/450v
5rk60gn-cef
5rk60gx-cef
60 1ø 230/240 50 4 1300 30 4.33/4.72 4.59/4.6 0.57/0.63 4/450v
□ = gear ratio, 3-200
decimal (intermediate) gearhead model: 5gn10x, 5gn10xk (ball bearing), 5gx10xk
5rk60a - round shaft dim. (pdf)
5rk60gn - pinion shaft (helical gear) dim. (pdf)
5rk60gx - pinion shaft (helical gear) dim. (pdf)
gearhead 5gn□ke dim. (pdf)
gearhead 5gx□kb dim. (pdf)
decimal gearhead 5gn10x(k) dim. (pdf)
decimal gearhead 5gx10xk dim. (pdf)

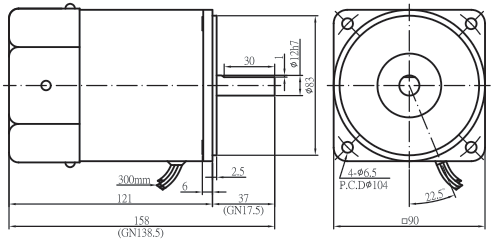

dimensions (unit: mm)
motors
terminal box type 6w-40w

terminal box type 6w-40w

  • standard ac reversible motors offer a wide selection with reliable performance, forward or reverse operation.
  • variable ac power input options.
  • output 6w up to 90w.
  • ce (emc & lvd), ul, ccc certified.
  • wide ranges of model work with magnetic brake, control circuits and speed reducer (motor with pinion shaft, gn or gx model).

reversible motors characteristic

world k series, single-phase
6w (1/125 hp) reversible motors specifications
6w
model
output
(w)
voltage
(v)
freq.
(hz)
pole  rated speed
(rpm)
rated time
(min.)
starting torque
(kg.cm)
 rated torque
(kg.cm)
rated current
(a)
capacitor
(μf)
2rk6a-at 6 1ø 100/110 50/60 4 900/1150 30 0.72/0.7 0.57/ 0.51 0.24/ 0.25 3.3/300v
3/300v
2rk6a-ct 6  1ø 200/220 50/60 4 1000/1300 30 0.72/0.8 0.55/ 0.45 0.13/ 0.15 1/450v
2rk6a-cet 6  1ø 230/240 50 4 1100/1050 30 0.95/0.94 0.53/ 0.55 0.14/ 0.14 1/450v

6w (1/125 hp) reversible gear motors specifications
6w motor
model
gearhead
model
output
(w)
voltage
(v)
freq.
(hz)
pole  rated speed
(rpm)
rated time
(min.)
starting torque
(kg.cm)
 rated torque
(kg.cm)
rated current
(a)
capacitor
(μf)
2rk6gn-at 2gn□ke 6 1ø 100/110 50/60 4 900/1150 30 0.72/0.7 0.57/0.51 0.24/ 0.25 3.3/300v
3/300v
2rk6gn-ct 6  1ø 200/220 50/60 4 1000/1300 30 0.72/0.8 0.55/0.45 0.13/ 0.15 1/450v
2rk6gn-cet 6  1ø 230/240 50 4 1100/1050 30 0.95/0.94 0.53/0.55 0.14/ 0.14 1/450v
□ = gear ratio, 3-180
decimal (intermediate) gearhead model: 2gn10x, 2gn10xk (ball bearing)
2rk6a - round shaft dim. (pdf)
2rk6gn - pinion shaft (helical gear) dim. (pdf)
gearhead 2gn□ke dim. (pdf)
decimal gearhead 2gn10x(k) dim. (pdf)
15w (1/50 hp) reversible motors specifications
15w
model
output
(w)
voltage
(v)
freq.
(hz)
pole  rated speed
(rpm)
rated time
(min.)
starting torque
(kg.cm)
 rated torque
(kg.cm)
rated current
(a)
capacitor
(μf)
3rk15a-at 15 1ø 100/110 50/60 4 1200/ 1450 30 1.17/1.24 1.16/0.95 0.37/0.44 6/300v
3rk15a-ct 15 1ø 200/220 50/60 4 1200/ 1450 30 0.96/1.34 0.96/0.97 0.20/0.23 1.5/450v
 3rk15a-cet 15 1ø 230/240 50 4 1250 30 1.36/1.31 1.14/1.19 0.19/0.21 1.5/450v

15w (1/50 hp) reversible gear motors specifications
15w motor
model
gearhead
model
output
(w)
voltage
(v)
freq.
(hz)
pole  rated speed
(rpm)
rated time
(min.)
starting torque
(kg.cm)
 rated torque
(kg.cm)
rated current
(a)
capacitor
(μf)
3rk15gn-at 3gn□ke 15 1ø 100/110 50/60 4 1200/ 1450 30 1.17/1.24 1.16/0.95 0.37/0.44 6/300v
3rk15gn-ct 15 1ø 200/220 50/60 4 1200/ 1450 30 0.96/1.34 0.96/0.97 0.20/0.23 1.5/450v
3rk15gn-cet 15 1ø 230/240 50 4 1250 30 1.36/1.31 1.14/1.19 0.19/0.21 1.5/450v
□ = gear ratio, 3-180
decimal (intermediate) gearhead model: 3gn10x, 3gn10xk (ball bearing)
3rk15a - round shaft dim. (pdf)
3rk15gn - pinion shaft (helical gear) dim. (pdf)
gearhead 3gn□ke dim. (pdf)
decimal gearhead 3gn10x(k) dim. (pdf)
25w (1/30 hp) reversible motors specifications
25w
model
output
(w)
voltage
(v)
freq.
(hz)
pole  rated speed
(rpm)
rated time
(min.)
starting torque
(kg.cm)
 rated torque
(kg.cm)
rated current
(a)
capacitor
(μf)
4rk25a-at 25 1ø 100/110 50/60 4 1250/1650 30 1.65/1.92 1.95/1.48 0.56/0.51 8/300v
4rk25a-ct 25 1ø 200/220 50/60 4 1300/1600 30 1.98/1.94 1.89/1.54 0.29/0.30 2.5/450v
2/450v
4rk25a-cet 25 1ø 230/240 50 4 1350 30 2.22/2.19 1.8/1.82 0.25/0.25 2/450v

25w (1/30 hp) reversible gear motors specifications
25w motor
model
gearhead
model
output
(w)
voltage
(v)
freq.
(hz)
pole  rated speed
(rpm)
rated time
(min.)
starting torque
(kg.cm)
 rated torque
(kg.cm)
rated current
(a)
capacitor
(μf)
4rk25gn-at 4gn□ke 25 1ø 100/110 50/60 4 1250/1650 30 1.65/1.92 1.95/1.48 0.56/0.51 8/300v
4rk25gn-ct 25 1ø 200/220 50/60 4 1300/1600 30 1.98/1.94 1.89/1.54 0.29/0.30 2.5/450v
2/450v
4rk25gn-cet 25 1ø 230/240 50 4 1350 30 2.22/2.19 1.8/1.82 0.25/0.25 2/450v
□ = gear ratio, 3-180
decimal (intermediate) gearhead model: 4gn10x, 4gn10xk (ball bearing)
4rk25a - round shaft dim. (pdf)
4rk25gn - pinion shaft (helical gear) dim. (pdf)
gearhead 4gn□ke dim. (pdf)
decimal gearhead 4gn10x(k) dim. (pdf)
40w (1/19 hp) reversible motors specifications
40w
model
output
(w)
voltage
(v)
freq.
(hz)
pole  rated speed
(rpm)
rated time
(min.)
starting torque
(kg.cm)
 rated torque
(kg.cm)
rated current
(a)
capacitor
(μf)
5rk40a-at 40 1ø 100/110 50/60 4 1050/ 1500 30 2.43/3.1 2.83/2.64 0.99/1.01 12/300v
5rk40a-ct 40 1ø 200/220 50/60 4 1150/ 1500 30 3.76/2.73 3.35/2.64 0.54/0.53 4/450v
3/350v
5rk40a-cet 40 1ø 230/240 50 4 1150/ 1300 30 2.41/3.17 3.36/3.04 0.49/0.44 3/450v

40w (1/19 hp) reversible gear motors specifications
40w motor
model
gearhead
model
output
(w)
voltage
(v)
freq.
(hz)
pole  rated speed
(rpm)
rated time
(min.)
starting torque
(kg.cm)
 rated torque
(kg.cm)
rated current
(a)
capacitor
(μf)
5rk40gn-at 5gn□ke 40 1ø 100/110 50/60 4 1050/ 1500 30 2.43/3.1 2.83/2.64 0.99/1.01 12/300v
5rk40gn-ct 40 1ø 200/220 50/60 4 1150/ 1500 30 3.76/2.73 3.35/2.64 0.54/0.53 4/450v
3/350v
5rk40gn-cet 40 1ø 230/240 50 4 1150/ 1300 30 2.41/3.17 3.36/3.04 0.49/0.44 3/450v
□ = gear ratio, 3-180
decimal (intermediate) gearhead model: 5gn10x, 5gn10xk (ball bearing)
5rk40a - round shaft dim. (pdf)
5rk40gn - pinion shaft (helical gear) dim. (pdf)
gearhead 5gn□ke dim. (pdf)
decimal gearhead 5gn10x(k) dim. (pdf)

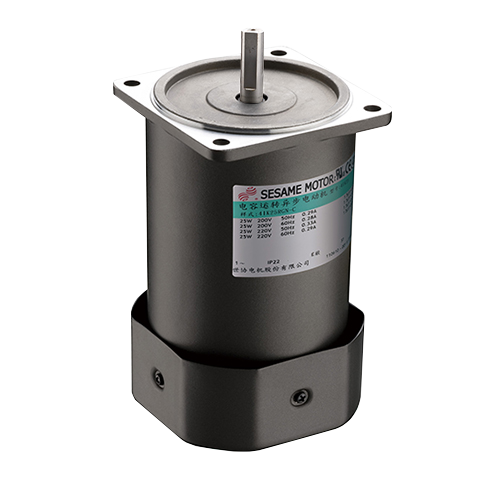

terminal box type 60w

terminal box type 60w

world k series, single-phase
60w (1/12 hp) reversible motors specifications
60w
model
output
(w)
voltage
(v)
freq.
(hz)
pole  rated speed
(rpm)
rated time
(min.)
starting torque
(kg.cm)
 rated torque
(kg.cm)
rated current
(a)
capacitor
(μf)
5rk60a-aft 60 1ø 100/110 50/60 4 1300/1600 30 3.08/4.03 4.82/3.78 1.34/1.25 16/300v
5rk60a-cft 60 1ø 200/220 50/60 4 1250/1600 30 2.38/2.97 4.68/3.68 0.75/0.73 4/450v
5rk60a-ceft 60 1ø 230/240 50 4 1300 30 4.33/4.72 4.59/4.6 0.57/0.63 4/450v

60w (1/12 hp) reversible gear motors specifications
60w motor
model
gearhead
model
output
(w)
voltage
(v)
freq.
(hz)
pole  rated speed
(rpm)
rated time
(min.)
starting torque
(kg.cm)
 rated torque
(kg.cm)
rated current
(a)
capacitor
(μf)
5rk60gn-aft
5rk60gx-aft
5gn□ke
5gx□k
5gx□kb
60 1ø 100/110 50/60 4 1300/1600 30 3.08/4.03 4.82/3.78 1.34/1.25 16/300v
5rk60gn-cft
5rk60gx-cft
60 1ø 200/220 50/60 4 1250/1600 30 2.38/2.97 4.68/3.68 0.75/0.73 4/450v
5rk60gn-ceft
5rk60gx-ceft
60 1ø 230/240 50 4 1300 30 4.33/4.72 4.59/4.6 0.57/0.63 4/450v
□ = gear ratio, 3-200
decimal (intermediate) gearhead model: 5gn10x, 5gn10xk (ball bearing), 5gx10xk
5rk60a - round shaft dim. (pdf)
5rk60gn - pinion shaft (helical gear) dim. (pdf)
5rk60gx - pinion shaft (helical gear) dim. (pdf)
gearhead 5gn□ke dim. (pdf)
gearhead 5gx□kb dim. (pdf)
gearhead 5gn□ke dim. (pdf)
gearhead 5gx□kb dim. (pdf)
decimal gearhead 5gn10x(k) dim. (pdf)
decimal gearhead 5gx10xk dim. (pdf)

related products

网站地图
