phl series

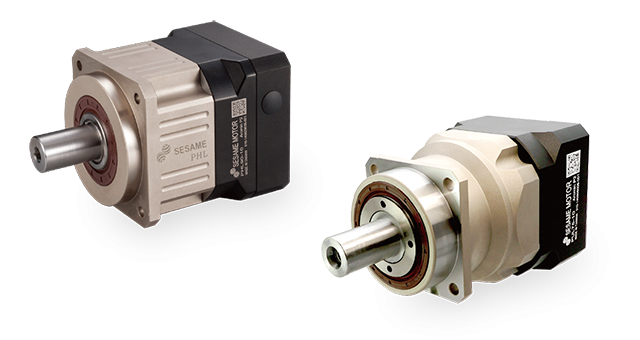

phl premium high precision gearboxes are square mounting flange, caged premium class helical planetary gears in an inline housing through sizes 90. high torque capacity, quiet operation with backlash as low as <1 arcmin. the phl high-precision planetary gearbox series have excellent product characteristics such as high efficiency, precision, reliability and long service life, and is most suitable for high-performance applications of precise positioning and high dynamic motion control, such as printing machinery, automation, robotics, etc.

gearbox features

backlash as low as 1 arc-minute, ultimate performance
one-piece planet carrier/output shaft, high rigidity and radial load capacity
hardened and ground gearing, high wear resistance and impact toughness
one-piece ring gear/housing, high precision and torque output
planets with full needle bearing support
ip65 enclosure and synthetic lubricant, maintenance-free service life

gearbox specs

frame size (mm): 42, 60, 90
ratio: 3-100:1
nominal input speed (rpm): 4000-5000
max. input speed (rpm): 8000-10000
backlash (arcmin): 1-5 single stage, 3-7 two stages
noise level (dba/1m): 56-60
enclosure: ip65
lubrication: service life synthetic lubricant

pgh serie

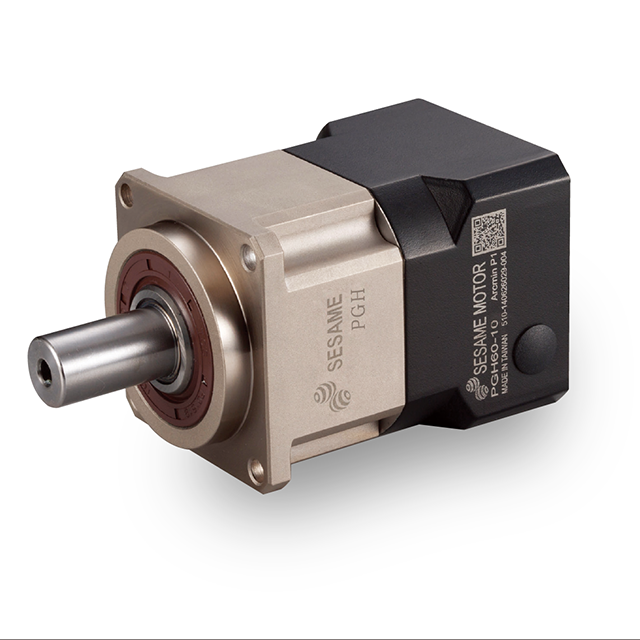

pgh premium type helical gear planetary gear reducer is offering 3 precision levels and 7 frame sizes to choose. they are ready for most industry and motion control applications. square mounting flange, caged premium class helical planetary gears in an inline housing through sizes 220 mm. high torque capacity, quiet operation with backlash as low as < 1 arcmin. ratios 3:1 to 100:1. pgh planetary gearbox series is the best power transmission component for the industrial robots, semiconductor devices, automatic storage system, etc.

features

inline configuration with output shaft 13 mm through 75 mm diameter
torque capacity range: 11 nm through 2000 nm
caged planet carrier: with premium helical planet gear set
high performance, efficiencies and low acoustics
wide range of ratios: 8 single stage ratios and up to 13 two-stage ratios
output bearings deliver radial load capacity as high as 33000 n, and axial capacities up to 18530 n
square servo and step motor input: accommodates 40 mm through 220 mm, with optional sizes available

specs

frame size (mm): 42, 60, 90, 115, 142, 180, 220
ratio: 3-100:1
nominal input speed (rpm): 2000-5000 max. input speed (rpm): 4000-10000
backlash (arcmin): 1-6 single stage, 3-8 two stages
noise level (dba/1m): 56-70
enclosure: ip65
lubricant: service life synthetic lubricant

pul series

high radial load

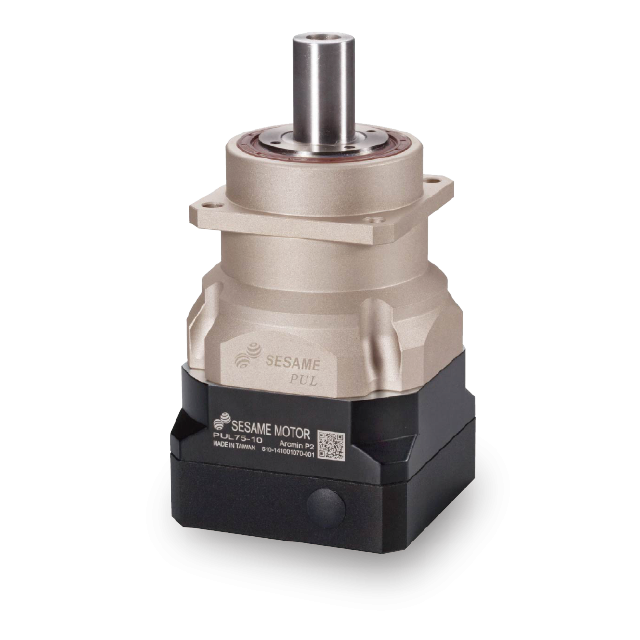

the pul series of output shaft inline helical gearbox provide a wide range of performance levels to high positioning accuracy and motion control applications, particularly when high radial loading is required. the performance of this precision planetary gearbox is reinforced based on the pua series. the maximum radial force is increased by an average of 155%. frame sizes 60-220 mm with the best level of backlash < 1 arcmin. taper roller bearings with maximum radial load capacity up to 27800n (pul-220), and axial load capacity up to 16200n. the pul gearboxes are specially well suited to work with pinion and rack for linear operation. commonly adapted in metal cutting machines, wood processing equipment, machine centers and highly dynamic motion control systems. right angle configuration (pur) is also available with max. frame size 220 mm.

features

3 levels of backlash, 6 frame sizes from 60-220 mm
premium and precision gear design, ratios from 3-100:1
one-piece planet carrier/output shaft, high rigidity and radial load capacity
taper roller bearings deliver radial load capacity as high as 27800 n, and axial capacities up to 16200 n
hardened and ground gearing, high wear resistance and impact toughness
one-piece ring gear/housing, high precision and torque output
planets with full needle bearing support
ip65 enclosure and synthetic lubricant, maintenance-free service life

specs

frame size (mm): 60, 75, 100, 140, 180, 220
ratio: 3-100:1
nominal input speed (rpm): 2000-5000
max. input speed (rpm): 4000-10000
backlash (arcmin): 1-6 single stage, 3-8 two stages
max. radial load (n): 4130-27800
service life (hrs): 30000 (15000 continuous operation)
noise level (dba/1m): 58-70
enclosure: ip65
lubricant: service life synthetic lubricant
