frame size 60mm-90mm

• integrated gear box contributes precision and efficiency.
• ball bearing closed gear box ensure radial and axial loading capacity.
• low noise and long service life.
• bldc compatible (gb series).
• gear ratio 3-180.

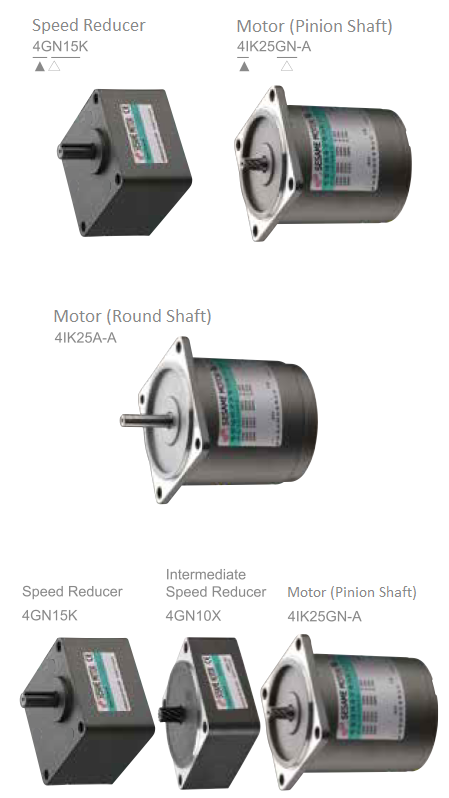

a motor equipped with round shaft or pinion shaft, only pinion shaft (gn or gx model code) can be installed with the speed reducer.

---

speed reducer (gearhead) specification

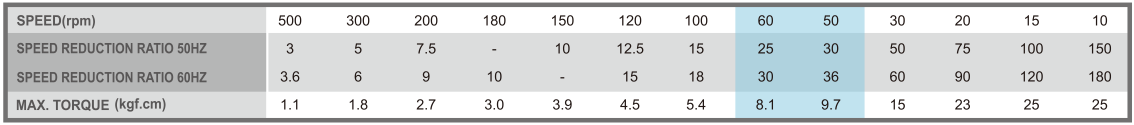

2gn□ke / 2gn□

□ = ratio, 3-180
2gn□ke / 2gn□ dim. (pdf)
2gn10x / 2gn10xk decimal gearhead dim. (pdf)

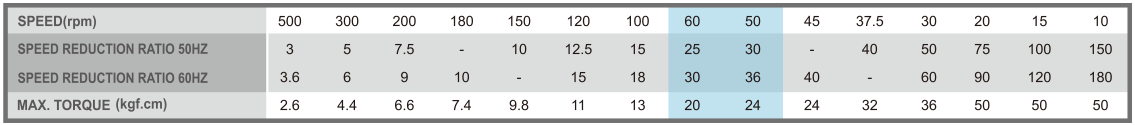

3gn□ke / 3gn□

□ = ratio, 3-180
3gn□ke / 3gn□ dim. (pdf)
​3gn10x / 3gn10xk decimal gearhead dim. (pdf)

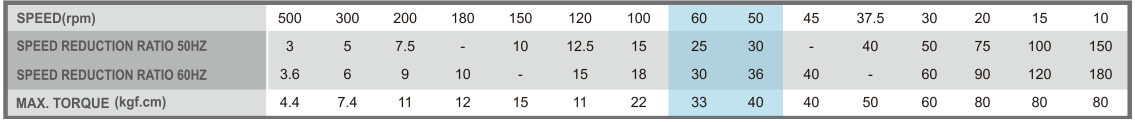

4gn□ke / 4gn□

□ = ratio, 3-180
4gn□ke / 4gn□ dim. (pdf)
4gn10x / 4gn10xk decimal gearhead dim. (pdf)

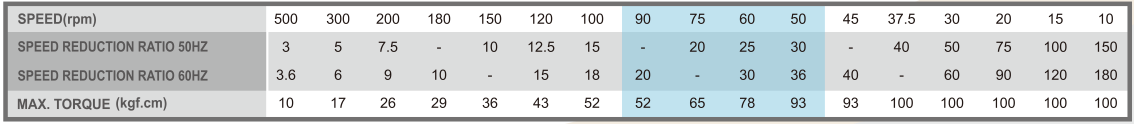

5gn□ke / 5gn□

□ = ratio, 3-180
5gn□ke / 5gn□ dim. (pdf)
​5gn10x / 5gn10xk decimal gearhead dim. (pdf)

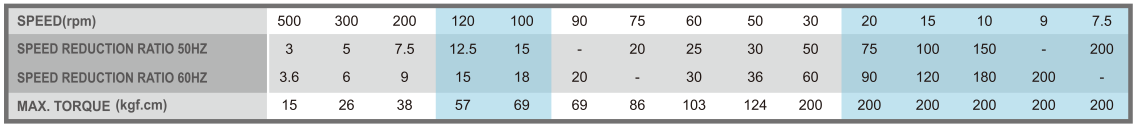

5gx□k / 5gx□kb

□ = ratio, 3-200
5gx□k dim. (pdf)
5gx□kb dim. (pdf)
5gx10xk decimal intermediate gearhead dim. (pdf)

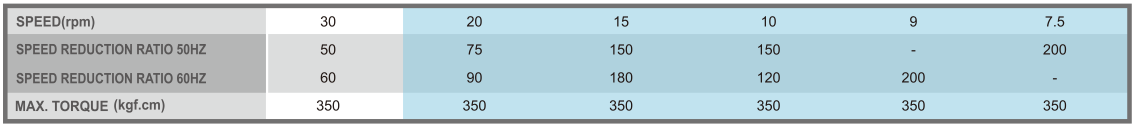

5gx□kbh heavy duty

□ = ratio, 50-200
5gx□kbh dim. (pdf)
