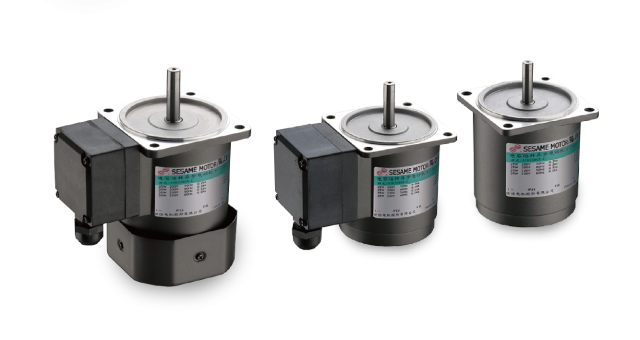

torque motors are designed to provide high starting torque and stable operation, especially in the low speed range or under a locked rotor condition.
lead wire type 3w-40w
torque motors characteristics
torque motors are designed to provide high starting torque and stable operation, especially in the low speed range or under a locked rotor condition. the torque is highest at zero speed and decreases steadily with increasing speed to keep motor and loading balanced. motor rotation speed change is available by adjusting supply voltage when loading torque is constant.the design of the torque motors is significantly different from that of the general motors. suitable and typical application is to hold down the loading by static torque or constrained force is required at the end after a high-speed operation. the voltage for continuous operation is 60v; rated short time in the occasions for voltages above 60v; the rated time is 5 minutes for voltage 100v.
torque motors are suitable for continuous winding and winding of articles at a certain speed with a certain tension. they are used commonly in situations where forced static torque is required during or after operation. torque motors are widely used in applications where the product needs to be wound onto a reel, such as textiles, paper, rubber, plastic (round wire, flat wire, plastic bags, cling film), metal wire, cable and printing machinery.
- available output power of 3 w up to 40 w
- built-in thermo switch
- gn type (pinion) output shaft models available for gearhead
types of torque motor
the motors torque adjustment is available by changing applied voltage or built-in voltage regulator in the terminal box.- standard type:
exterior voltage regulator is required to adjust motor speed. - regulator built-in type:
the voltage regulator is installed in the terminal box to adjust motor speed.
torque motor specifications
3w-40w, 110v
| model | rated time (min.) | output (w) |
voltage (v) |
freq. (hz) |
rated speed (rpm) |
starting torque (kg.cm) |
rated torque (kg.cm) |
rated current (a) |
capacitor (μf) |
| 2tk3a-ap | 5 min. / continuous | 3 / 1 3 / 1 |
110 / 60 110 / 60 |
60 50 |
990 / 570 1150 / 880 |
0.59 / 0.33 1.02 / 0.39 |
0.19 / 0.14 0.26 / 0.11 |
0.44 / 0.37 0.47 / 0.33 |
6 / 300v 6 / 300v |
| 3tk6a-ap | 5 min. / continuous | 6 / 2 6 / 2 |
110 / 60 110 / 60 |
60 50 |
1550 / 1070 1250 / 840 |
2.23 / 0.57 2.20 / 0.58 |
0.38 / 0.18 0.47 / 0.23 |
0.76 / 0.44 0.59 / 0.36 |
10 / 300v 10 / 300v |
| 4tk10a-ap | 5 min. / continuous | 10 / 3 10 / 3 |
110 / 60 110 / 60 |
60 50 |
1500 / 700 1140 / 1050 |
2.87 / 0.99 2.94 / 1.15 |
0.65 / 0.41 0.86 / 0.28 |
0.91 / 0.61 0.67 / 0.49 |
12 / 300v 12 / 300v |
| 5tk20a-ap | 5 min. / continuous | 20 / 5 20 / 5 |
110 / 60 110 / 60 |
60 50 |
1340 / 1170 1100 / 1010 |
4.61 / 2.37 4.57 / 1.95 |
1.45 / 0.42 1.76 / 0.48 |
1.87 / 1.25 1.36 / 0.92 |
20 / 300v 20 / 300v |
| 5tk40a-afp | 5 min. / continuous | 40 / 10 40 / 10 |
110 / 60 110 / 60 |
60 50 |
1510 / 1280 1360 / 680 |
7.89 / 2.09 6.9 / 2.37 |
2.58 / 0.76 0.72 / 1.44 |
1.55 / 0.97 1.10 / 0.92 |
24 / 300v 24 / 300v |
3w-40w, 220v
| model | rated time (min.) | output (w) |
voltage (v) |
freq. (hz) |
rated speed (rpm) |
starting torque (kg.cm) |
rated torque (kg.cm) |
rated current (a) |
capacitor (μf) |
| 2tk3a-cp | 5 min. / continuous | 3 / 1 3 / 1 |
220 / 120 220 / 120 |
60 50 |
1170 / 1180 1070 / 650 |
0.63 / 0.36 0.76 / 0.32 |
0.23 / 0.08 0.27 / 0.15 |
0.18 / 0.14 0.15 / 0.10 |
1 / 450v 1 / 450v |
| 3tk6a-cp | 5 min. / continuous | 6 / 2 6 / 2 |
220 / 120 220 / 120 |
60 50 |
1240 / 1050 1100 / 1180 |
1.38 / 0.62 1.63 / 0.7 |
0.47 / 0.18 0.54 / 0.17 |
0.33 / 0.22 0.27 / 0.20 |
2 / 450v 2 / 450v |
| 4tk10a-cp | 5 min. / continuous | 10 / 3 10 / 3 |
220 / 120 220 / 120 |
60 50 |
1200 / 1300 1050 / 1020 |
2.76 / 1.23 2.84 / 1.19 |
0.80 / 0.22 0.91 / 0.28 |
0.37 / 0.28 0.29 / 0.21 |
2.5 / 450v 2.5 / 450v |
| 5tk20a-cp | 5 min. / continuous | 20 / 5 20 / 5 |
220 / 120 220 / 120 |
60 50 |
1350 / 1240 1070 / 760 |
3.97 / 1.24 4.26 / 1.35 |
1.44 / 0.39 1.83 / 0.65 |
0.50 / 0.32 0.37 / 0.24 |
3 / 450v 3 / 450v |
| 5tk40a-cfp | 5 min. / continuous | 40 / 10 40 / 10 |
220 / 120 220 / 120 |
60 50 |
1480 / 1360 1100 / 900 |
7.9 / 2.4 7.1 / 3.2 |
2.63 / 0.72 3.53 / 1.1 |
0.45 / 0.50 0.71 / 0.54 |
6 / 450v 6 / 450v |
3tk6a - 6w round shaft dim. (pdf)
4tk10a - 10w round shaft dim. (pdf)
5tk20a - 20w round shaft dim. (pdf)
5tk40a - 40w round shaft dim. (pdf)

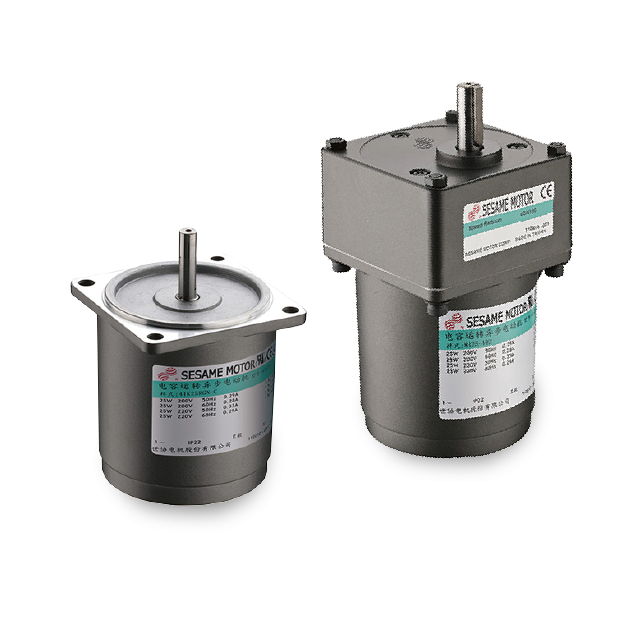

torque gear motor specifications
3w-40w, 110v
| model | gearhead | rated time (min.) | output (w) |
voltage (v) |
freq. (hz) |
rated speed (rpm) |
starting torque (kg.cm) |
rated torque (kg.cm) |
rated current (a) |
capacitor (μf) |
| 2tk3gn-ap | 2gn□ke | 5 min. / continuous | 3 / 1 3 / 1 |
110 / 60 110 / 60 |
60 50 |
990 / 570 1150 / 880 |
0.59 / 0.33 1.02 / 0.39 |
0.19 / 0.14 0.26 / 0.11 |
0.44 / 0.37 0.47 / 0.33 |
6 / 300v 6 / 300v |
| 3tk6gnap | 3gn□ke | 5 min. / continuous | 6 / 2 6 / 2 |
110 / 60 110 / 60 |
60 50 |
1550 / 1070 1250 / 840 |
2.23 / 0.57 2.20 / 0.58 |
0.38 / 0.18 0.47 / 0.23 |
0.76 / 0.44 0.59 / 0.36 |
10 / 300v 10 / 300v |
| 4tk10gn-ap | 4gn□ke | 5 min. / continuous | 10 / 3 10 / 3 |
110 / 60 110 / 60 |
60 50 |
1500 / 700 1140 / 1050 |
2.87 / 0.99 2.94 / 1.15 |
0.65 / 0.41 0.86 / 0.28 |
0.91 / 0.61 0.67 / 0.49 |
12 / 300v 12 / 300v |
| 5tk20gn-ap | 5gn□ke | 5 min. / continuous | 20 / 5 20 / 5 |
110 / 60 110 / 60 |
60 50 |
1340 / 1170 1100 / 1010 |
4.61 / 2.37 4.57 / 1.95 |
1.45 / 0.42 1.76 / 0.48 |
1.87 / 1.25 1.36 / 0.92 |
20 / 300v 20 / 300v |
| 5tk40gx-afp | 5gx□kb | 5 min. / continuous | 40 / 10 40 / 10 |
110 / 60 110 / 60 |
60 50 |
1510 / 1280 1360 / 680 |
7.89 / 2.09 6.9 / 2.37 |
2.58 / 0.76 0.72 / 1.44 |
1.55 / 0.97 1.10 / 0.92 |
24 / 300v 24 / 300v |
3w-40w, 220v
| model | gearhead | rated time (min.) | output (w) |
voltage (v) |
freq. (hz) |
rated speed (rpm) |
starting torque (kg.cm) |
rated torque (kg.cm) |
rated current (a) |
capacitor (μf) |
| 2tk3gn-cp | 2gn□ke | 5 min. / continuous | 3 / 1 3 / 1 |
220 / 120 220 / 120 |
60 50 |
1170 / 1180 1070 / 650 |
0.63 / 0.36 0.76 / 0.32 |
0.23 / 0.08 0.27 / 0.15 |
0.18 / 0.14 0.15 / 0.10 |
1 / 450v 1 / 450v |
| 3tk6gn-cp | 3gn□ke | 5 min. / continuous | 6 / 2 6 / 2 |
220 / 120 220 / 120 |
60 50 |
1240 / 1050 1100 / 1180 |
1.38 / 0.62 1.63 / 0.7 |
0.47 / 0.18 0.54 / 0.17 |
0.33 / 0.22 0.27 / 0.20 |
2 / 450v 2 / 450v |
| 4tk10gn-cp | 4gn□ke | 5 min. / continuous | 10 / 3 10 / 3 |
220 / 120 220 / 120 |
60 50 |
1200 / 1300 1050 / 1020 |
2.76 / 1.23 2.84 / 1.19 |
0.80 / 0.22 0.91 / 0.28 |
0.37 / 0.28 0.29 / 0.21 |
2.5 / 450v 2.5 / 450v |
| 5tk20gn-cp | 5gn□ke | 5 min. / continuous | 20 / 5 20 / 5 |
220 / 120 220 / 120 |
60 50 |
1350 / 1240 1070 / 760 |
3.97 / 1.24 4.26 / 1.35 |
1.44 / 0.39 1.83 / 0.65 |
0.50 / 0.32 0.37 / 0.24 |
3 / 450v 3 / 450v |
| 5tk40gx-cfp | 5gx□kb | 5 min. / continuous | 40 / 10 40 / 10 |
220 / 120 220 / 120 |
60 50 |
1480 / 1360 1100 / 900 |
7.9 / 2.4 7.1 / 3.2 |
2.63 / 0.72 3.53 / 1.1 |
0.45 / 0.50 0.71 / 0.54 |
6 / 450v 6 / 450v |
gearhead 2gn□ke dim. (pdf)
3tk6gn - 6w pinion shaft (helical gear) (pdf)
gearhead 3gn□ke dim. (pdf)
4tk10gn - 10w pinion shaft (helical gear) (pdf)
gearhead 4gn□ke dim. (pdf)
5tk20gn - 20w pinion shaft (helical gear) (pdf)
gearhead 5gn□ke dim. (pdf)
5tk40gx - 40w pinion shaft (helical gear) (pdf)
gearhead 5gx□kb dim. (pdf)

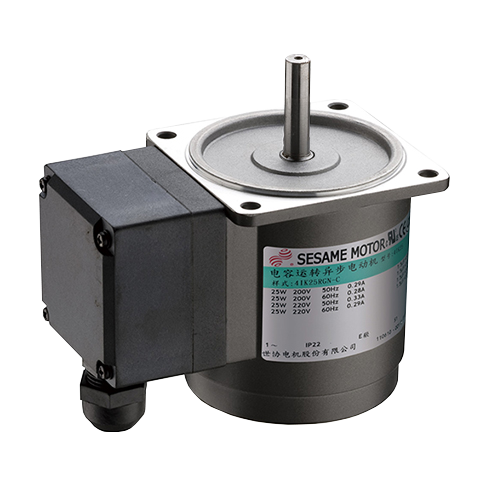

terminal box type 3w-40w
torque motors characteristics
torque motors are designed to provide high starting torque and stable operation, especially in the low speed range or under a locked rotor condition. the torque is highest at zero speed and decreases steadily with increasing speed to keep motor and loading balanced. motor rotation speed change is available by adjusting supply voltage when loading torque is constant.the design of the torque motors is significantly different from that of the general motors. suitable and typical application is to hold down the loading by static torque or constrained force is required at the end after a high-speed operation. the voltage for continuous operation is 60v; rated short time in the occasions for voltages above 60v; the rated time is 5 minutes for voltage 100v.
torque motors are suitable for continuous winding and winding of articles at a certain speed with a certain tension. they are used commonly in situations where forced static torque is required during or after operation. torque motors are widely used in applications where the product needs to be wound onto a reel, such as textiles, paper, rubber, plastic (round wire, flat wire, plastic bags, cling film), metal wire, cable and printing machinery.
- available output power of 3 w up to 40 w
- built-in thermo switch
- gn type (pinion) output shaft models available for gearhead
types of torque motor
the motors torque adjustment is available by changing applied voltage or built-in voltage regulator in the terminal box.- standard type:
exterior voltage regulator is required to adjust motor speed. - regulator built-in type:
the voltage regulator is installed in the terminal box to adjust motor speed.
torque motor specifications
3w-40w, 110v
| model | rated time (min.) |
output (w) |
voltage (v) |
freq. (hz) |
rated speed (rpm) |
starting torque (kg.cm) |
rated torque (kg.cm) |
rated current (a) |
capacitor (μf) |
| 2tk3ca-ap | 5 min. / continuous | 3 / 1 3 / 1 |
110 / 60 110 / 60 |
60 50 |
990 / 570 1150 / 880 |
0.59 / 0.33 1.02 / 0.39 |
0.19 / 0.14 0.26 / 0.11 |
0.44 / 0.37 0.47 / 0.33 |
6 / 300v 6 / 300v |
| 3tk6ca-ap | 5 min. / continuous | 6 / 2 6 / 2 |
110 / 60 110 / 60 |
60 50 |
1550 / 1070 1250 / 840 |
2.23 / 0.57 2.20 / 0.58 |
0.38 / 0.18 0.47 / 0.23 |
0.76 / 0.44 0.59 / 0.36 |
10 / 300v 10 / 300v |
| 4tk10ca-ap | 5 min. / continuous | 10 / 3 10 / 3 |
110 / 60 110 / 60 |
60 50 |
1500 / 700 1140 / 1050 |
2.87 / 0.99 2.94 / 1.15 |
0.65 / 0.41 0.86 / 0.28 |
0.91 / 0.61 0.67 / 0.49 |
12 / 300v 12 / 300v |
| 5tk20ca-ap | 5 min. / continuous | 20 / 5 20 / 5 |
110 / 60 110 / 60 |
60 50 |
1340 / 1170 1100 / 1010 |
4.61 / 2.37 4.57 / 1.95 |
1.45 / 0.42 1.76 / 0.48 |
1.87 / 1.25 1.36 / 0.92 |
20 / 300v 20 / 300v |
| 5tk40ca-afp | 5 min. / continuous | 40 / 10 40 / 10 |
110 / 60 110 / 60 |
60 50 |
1510 / 1280 1360 / 680 |
7.89 / 2.09 6.9 / 2.37 |
2.58 / 0.76 0.72 / 1.44 |
1.55 / 0.97 1.10 / 0.92 |
24 / 300v 24 / 300v |
3w-40w, 220v
| model | rated time (min.) |
output (w) |
voltage (v) |
freq. (hz) |
rated speed (rpm) |
starting torque (kg.cm) |
rated torque (kg.cm) |
rated current (a) |
capacitor (μf) |
| 2tk3ca-cp | 5 min. / continuous | 3 / 1 3 / 1 |
220 / 120 220 / 120 |
60 50 |
1170 / 1180 1070 / 650 |
0.63 / 0.36 0.76 / 0.32 |
0.23 / 0.08 0.27 / 0.15 |
0.18 / 0.14 0.15 / 0.10 |
1 / 450v 1 / 450v |
| 3tk6ca-cp | 5 min. / continuous | 6 / 2 6 / 2 |
220 / 120 220 / 120 |
60 50 |
1240 / 1050 1100 / 1180 |
1.38 / 0.62 1.63 / 0.7 |
0.47 / 0.18 0.54 / 0.17 |
0.33 / 0.22 0.27 / 0.20 |
2 / 450v 2 / 450v |
| 4tk10ca-cp | 5 min. / continuous | 10 / 3 10 / 3 |
220 / 120 220 / 120 |
60 50 |
1200 / 1300 1050 / 1020 |
2.76 / 1.23 2.84 / 1.19 |
0.80 / 0.22 0.91 / 0.28 |
0.37 / 0.28 0.29 / 0.21 |
2.5 / 450v 2.5 / 450v |
| 5tk20ca-cp | 5 min. / continuous | 20 / 5 20 / 5 |
220 / 120 220 / 120 |
60 50 |
1350 / 1240 1070 / 760 |
3.97 / 1.24 4.26 / 1.35 |
1.44 / 0.39 1.83 / 0.65 |
0.50 / 0.32 0.37 / 0.24 |
3 / 450v 3 / 450v |
| 5tk40ca-cfp | 5 min. / continuous | 40 / 10 40 / 10 |
220 / 120 220 / 120 |
60 50 |
1480 / 1360 1100 / 900 |
7.9 / 2.4 7.1 / 3.2 |
2.63 / 0.72 3.53 / 1.1 |
0.45 / 0.50 0.71 / 0.54 |
6 / 450v 6 / 450v |
3tk6ca - 6w round shaft dim. (pdf)
4tk10ca - 10wround shaft dim. (pdf)
5tk20ca - 20w round shaft dim. (pdf)
5tk40ca - 40w round shaft dim. (pdf)
torque gear motor specifications
3w-40w, 110v
| model | gearhead | rated time (min.) |
output (w) |
voltage (v) |
freq. (hz) |
rated speed (rpm) |
starting torque (kg.cm) |
rated torque (kg.cm) |
rated current (a) |
capacitor (μf) |
| 2tk3cgn-ap | 2gn□ke | 5 min. / continuous | 3 / 1 3 / 1 |
110 / 60 110 / 60 |
60 50 |
990 / 570 1150 / 880 |
0.59 / 0.33 1.02 / 0.39 |
0.19 / 0.14 0.26 / 0.11 |
0.44 / 0.37 0.47 / 0.33 |
6 / 300v 6 / 300v |
| 3tk6cgnap | 3gn□ke | 5 min. / continuous | 6 / 2 6 / 2 |
110 / 60 110 / 60 |
60 50 |
1550 / 1070 1250 / 840 |
2.23 / 0.57 2.20 / 0.58 |
0.38 / 0.18 0.47 / 0.23 |
0.76 / 0.44 0.59 / 0.36 |
10 / 300v 10 / 300v |
| 4tk10cgn-ap | 4gn□ke | 5 min. / continuous | 10 / 3 10 / 3 |
110 / 60 110 / 60 |
60 50 |
1500 / 700 1140 / 1050 |
2.87 / 0.99 2.94 / 1.15 |
0.65 / 0.41 0.86 / 0.28 |
0.91 / 0.61 0.67 / 0.49 |
12 / 300v 12 / 300v |
| 5tk20cgn-ap | 5gn□ke | 5 min. / continuous | 20 / 5 20 / 5 |
110 / 60 110 / 60 |
60 50 |
1340 / 1170 1100 / 1010 |
4.61 / 2.37 4.57 / 1.95 |
1.45 / 0.42 1.76 / 0.48 |
1.87 / 1.25 1.36 / 0.92 |
20 / 300v 20 / 300v |
| 5tk40cgx-afp | 5gx□kb | 5 min. / continuous | 40 / 10 40 / 10 |
110 / 60 110 / 60 |
60 50 |
1510 / 1280 1360 / 680 |
7.89 / 2.09 6.9 / 2.37 |
2.58 / 0.76 0.72 / 1.44 |
1.55 / 0.97 1.10 / 0.92 |
24 / 300v 24 / 300v |
3w-40w, 220v
| model | gearhead | rated time (min.) |
output (w) |
voltage (v) |
freq. (hz) |
rated speed (rpm) |
starting torque (kg.cm) |
rated torque (kg.cm) |
rated current (a) |
capacitor (μf) |
| 2tk3cgn-cp | 2gn□ke | 5 min. / continuous | 3 / 1 3 / 1 |
220 / 120 220 / 120 |
60 50 |
1170 / 1180 1070 / 650 |
0.63 / 0.36 0.76 / 0.32 |
0.23 / 0.08 0.27 / 0.15 |
0.18 / 0.14 0.15 / 0.10 |
1 / 450v 1 / 450v |
| 3tk6cgn-cp | 3gn□ke | 5 min. / continuous | 6 / 2 6 / 2 |
220 / 120 220 / 120 |
60 50 |
1240 / 1050 1100 / 1180 |
1.38 / 0.62 1.63 / 0.7 |
0.47 / 0.18 0.54 / 0.17 |
0.33 / 0.22 0.27 / 0.20 |
2 / 450v 2 / 450v |
| 4tk10cgn-cp | 4gn□ke | 5 min. / continuous | 10 / 3 10 / 3 |
220 / 120 220 / 120 |
60 50 |
1200 / 1300 1050 / 1020 |
2.76 / 1.23 2.84 / 1.19 |
0.80 / 0.22 0.91 / 0.28 |
0.37 / 0.28 0.29 / 0.21 |
2.5 / 450v 2.5 / 450v |
| 5tk20cgn-cp | 5gn□ke | 5 min. / continuous | 20 / 5 20 / 5 |
220 / 120 220 / 120 |
60 50 |
1350 / 1240 1070 / 760 |
3.97 / 1.24 4.26 / 1.35 |
1.44 / 0.39 1.83 / 0.65 |
0.50 / 0.32 0.37 / 0.24 |
3 / 450v 3 / 450v |
| 5tk40cgx-cfp | 5gx□kb | 5 min. / continuous | 40 / 10 40 / 10 |
220 / 120 220 / 120 |
60 50 |
1480 / 1360 1100 / 900 |
7.9 / 2.4 7.1 / 3.2 |
2.63 / 0.72 3.53 / 1.1 |
0.45 / 0.50 0.71 / 0.54 |
6 / 450v 6 / 450v |
gearhead 2gn□ke dim. (pdf)
3tk6cgn - 6w pinion shaft (helical gear) dim. (pdf)
gearhead 3gn□ke dim. (pdf)
4tk10cgn - 10w pinion shaft (helical gear) dim. (pdf)
gearhead 4gn□ke dim. (pdf)
5tk20cgn - 20w pinion shaft (helical gear) dim. (pdf)
gearhead 5gn□ke dim. (pdf)
5tk40cgx - 40w pinion shaft (helical gear) dim. (pdf)
gearhead 5gx□kb dim. (pdf)
