ac gear motors

foot mounted gear motors

  • impact size and structure with precision gear process ensure low vibration and noise
  • aluminum housing benefits heat diffusion
  • output 100w (1/8hp) ~ 2200w (3hp)
  • wide range of application with brake and various ac power supply options
  • thermo switch available (optional)
  • ce (emc & lvd), ul, ccc certified
foot mounted gear motors

output 100w-200w

foot mounted gear motors specifications

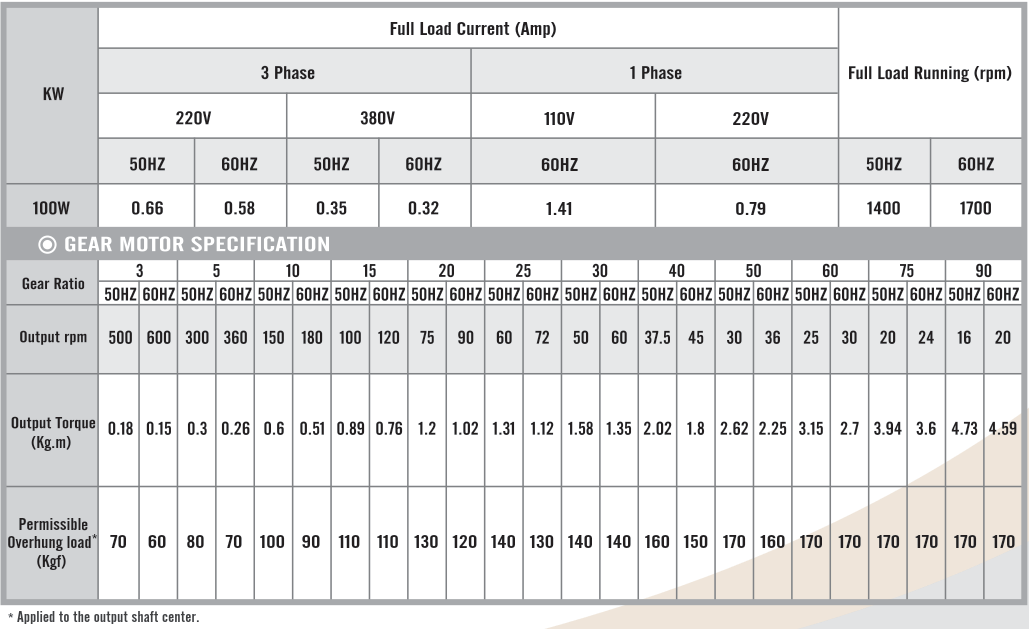

g11h100, output 100w (1/8 hp)

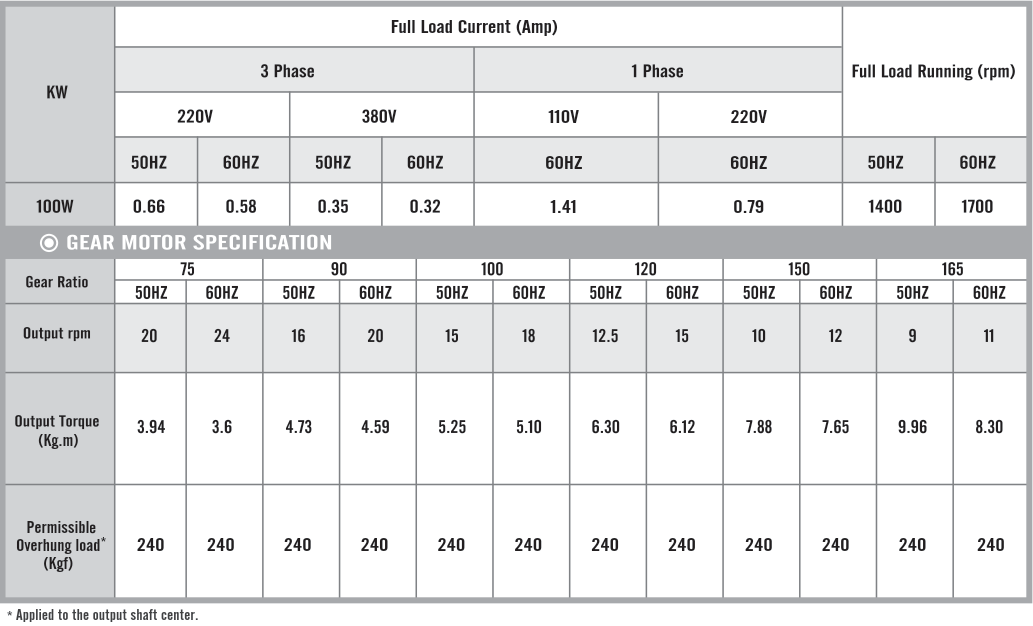

g12h100, output 100w (1/8 hp)

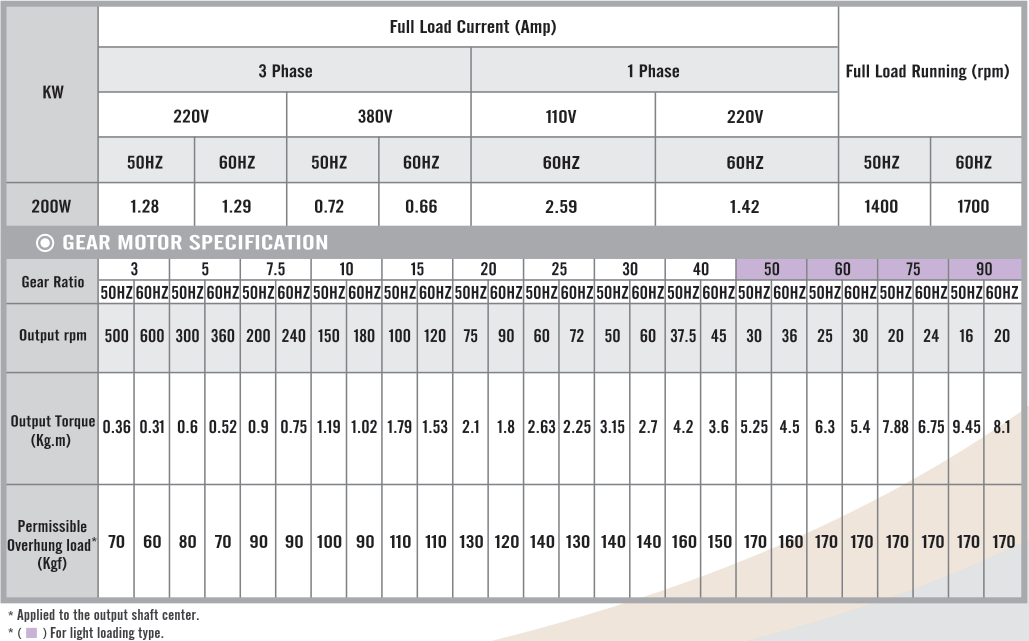

g11h200, output 200w (1/4 hp)

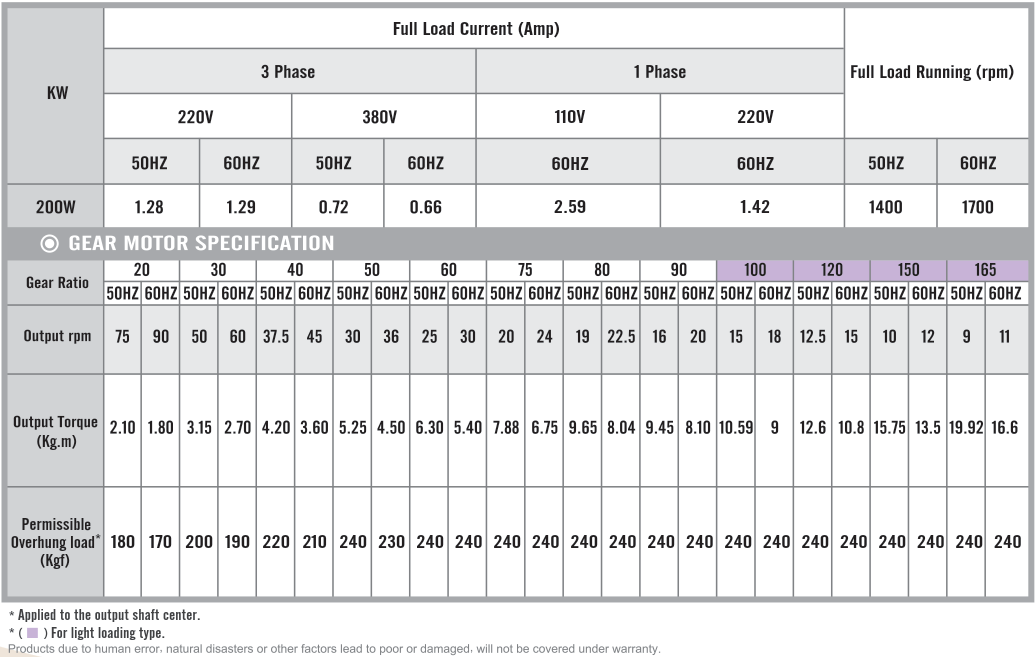

g12h200, output 200w (1/4 hp)

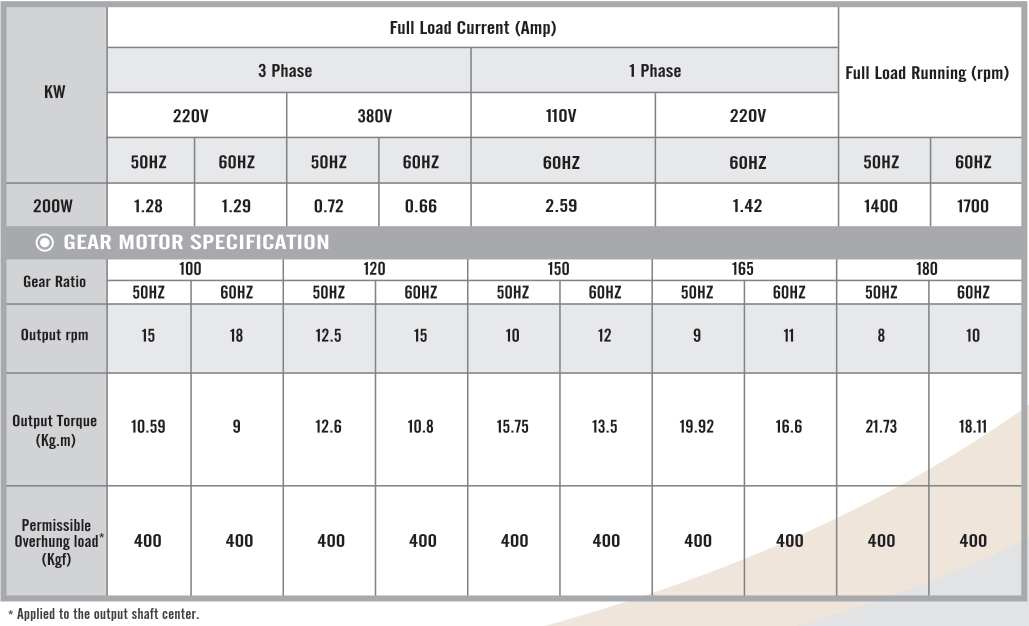

g13h200, output 200w (1/4 hp)

output 400w-750w

foot mounted gear motors specifications

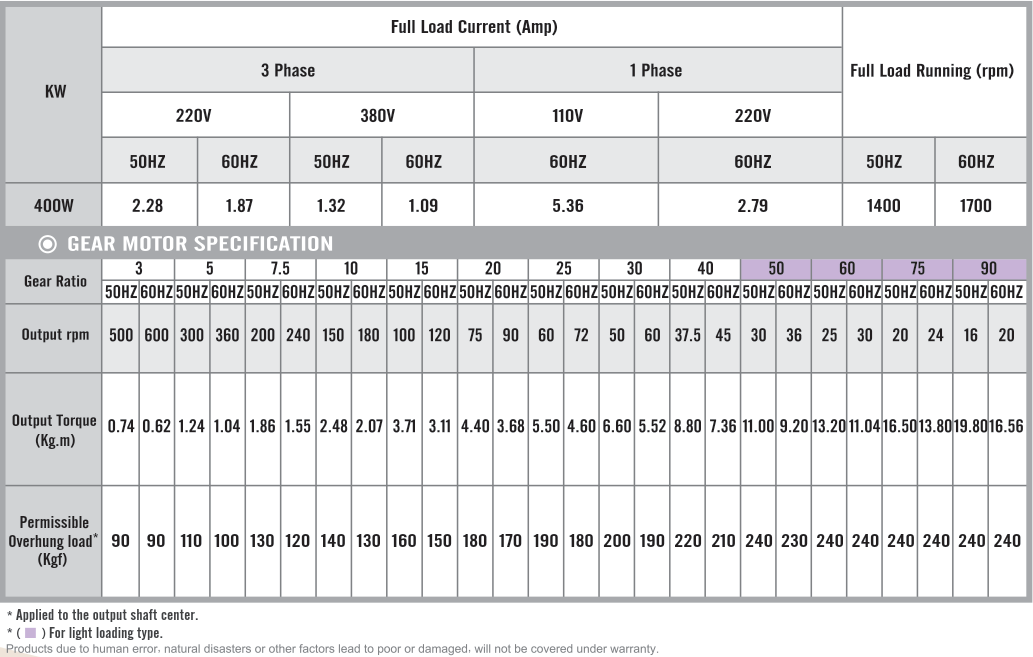

g12h400, output 400w (1/2 hp)

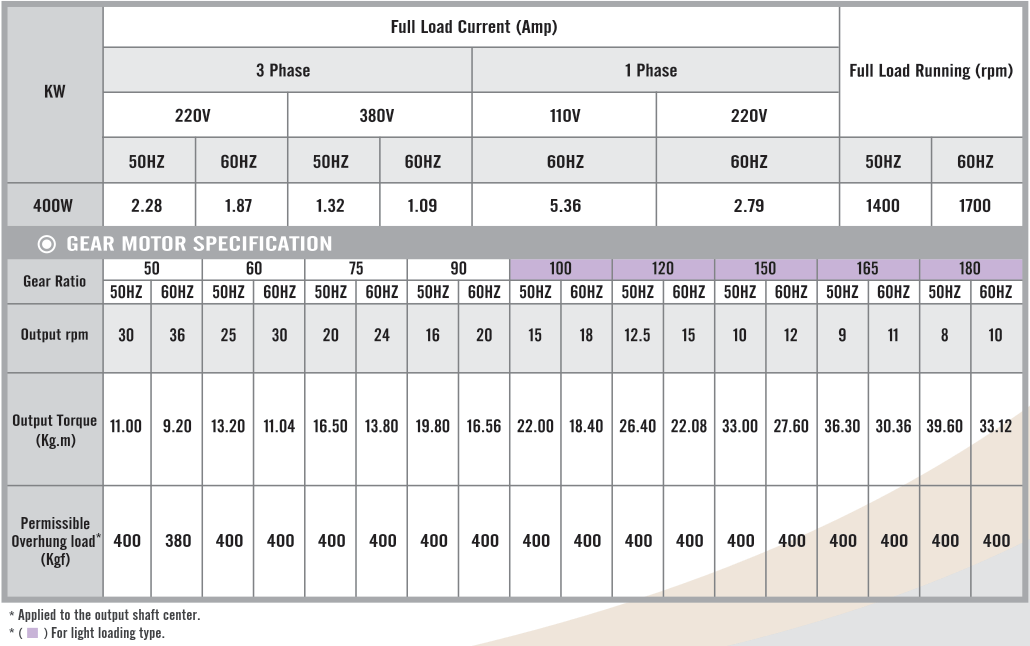

g13h400, output 400w (1/2 hp)

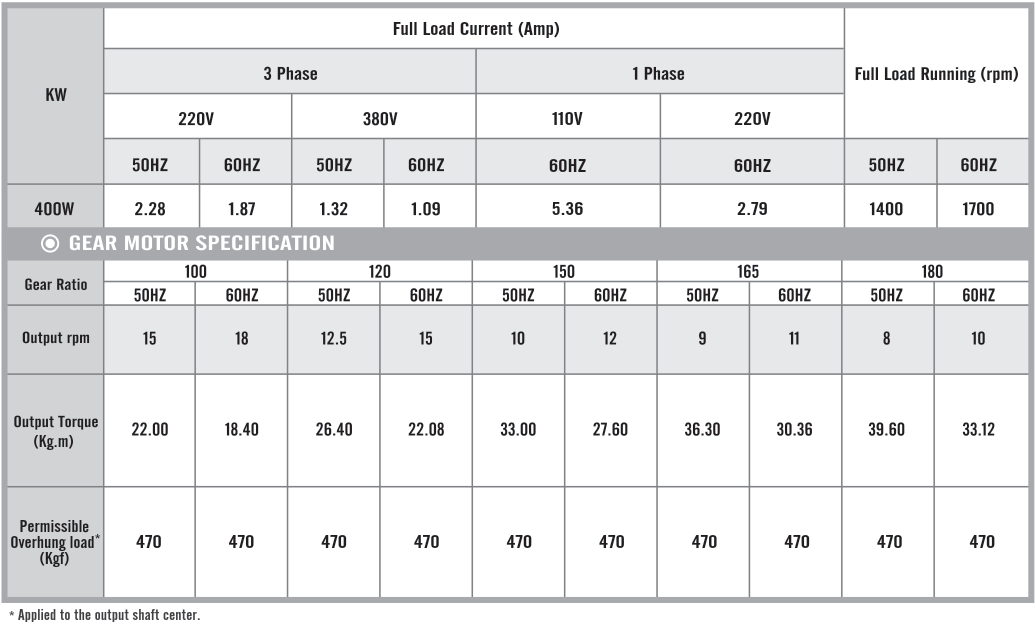

g14h400, output 400w (1/2 hp)

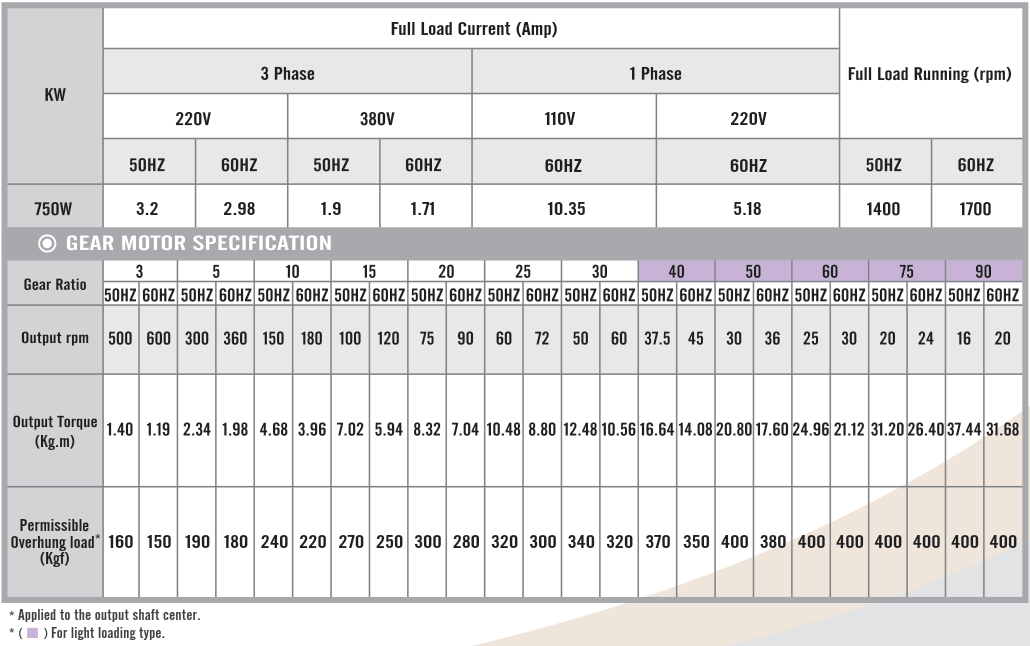

g13h750, output 750w (1 hp)

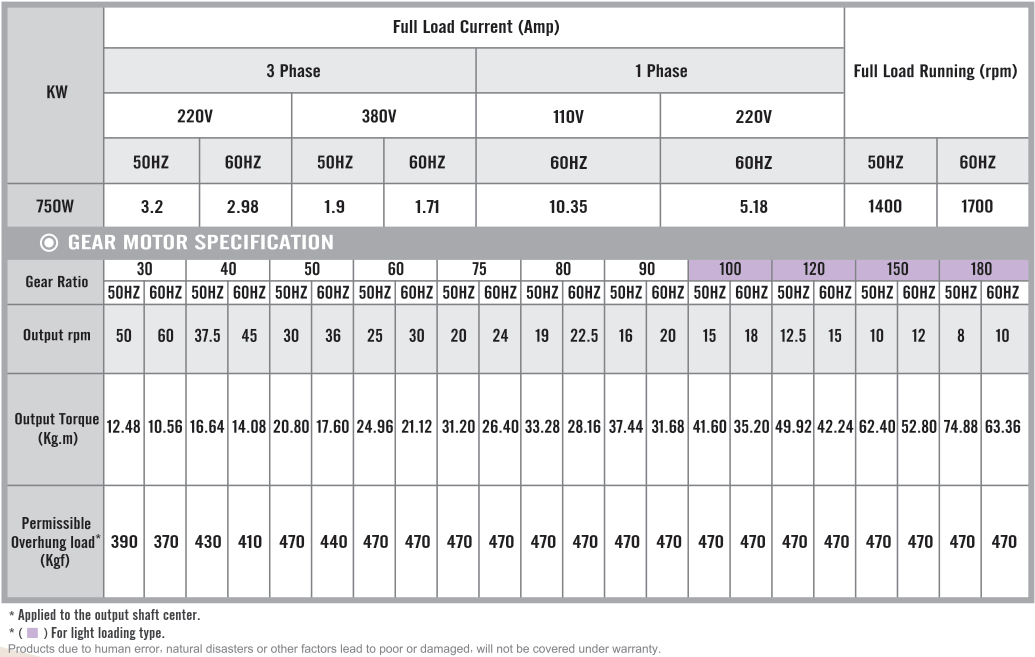

g14h750, output 750w (1 hp)

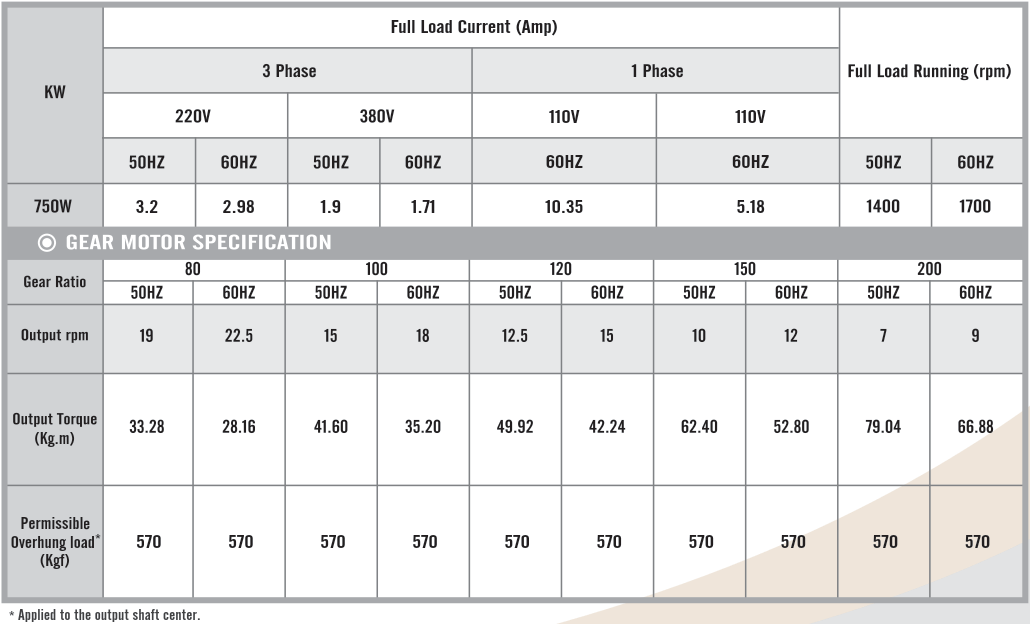

g15h750, output 750w (1 hp)

output 1.5kw-2.2w

foot mounted gear motors specifications

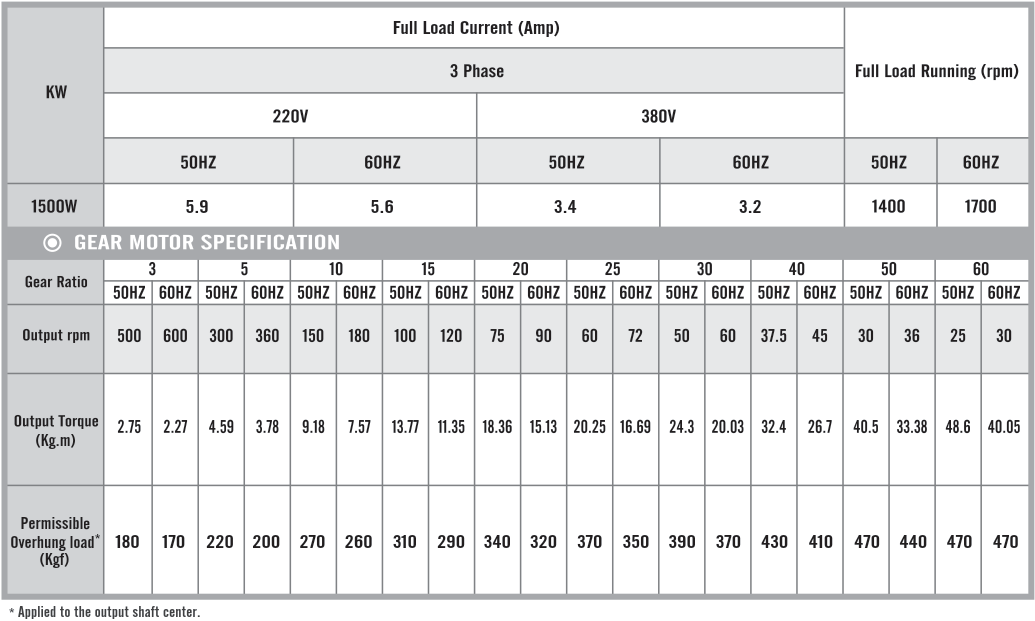

g14h1500, output 1.5kw (2 hp)

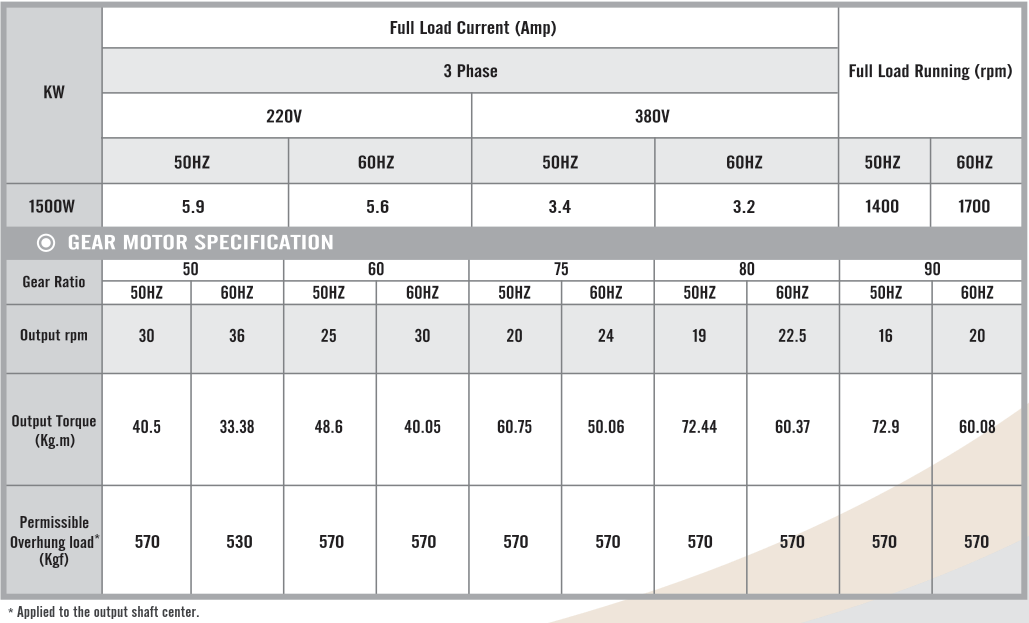

g15h1500, output 1.5kw (2 hp)

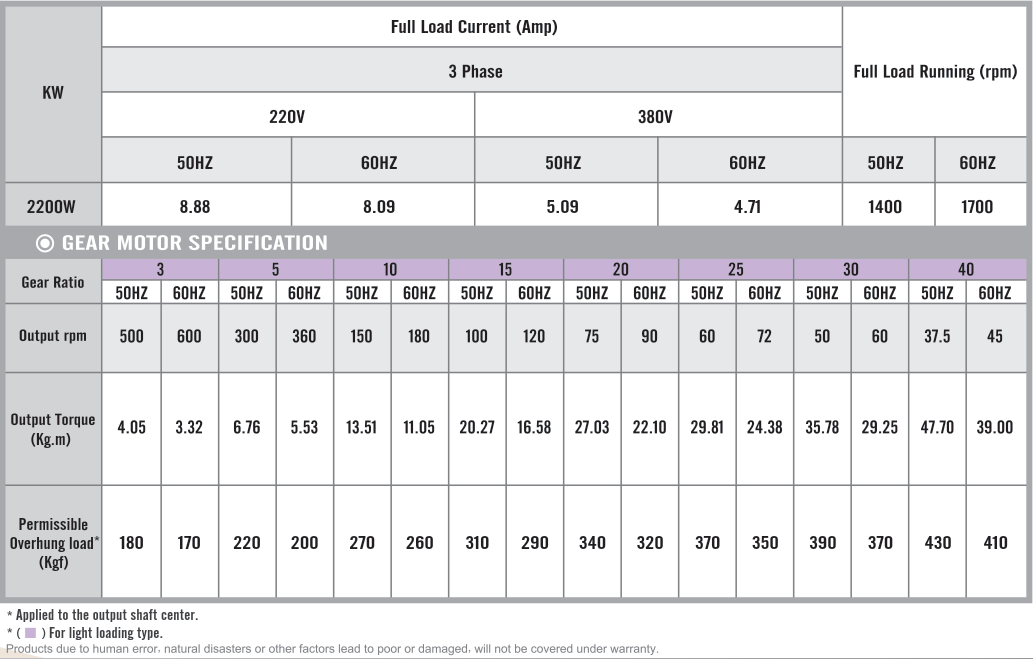

g14h2200, output 2.2kw (3 hp)

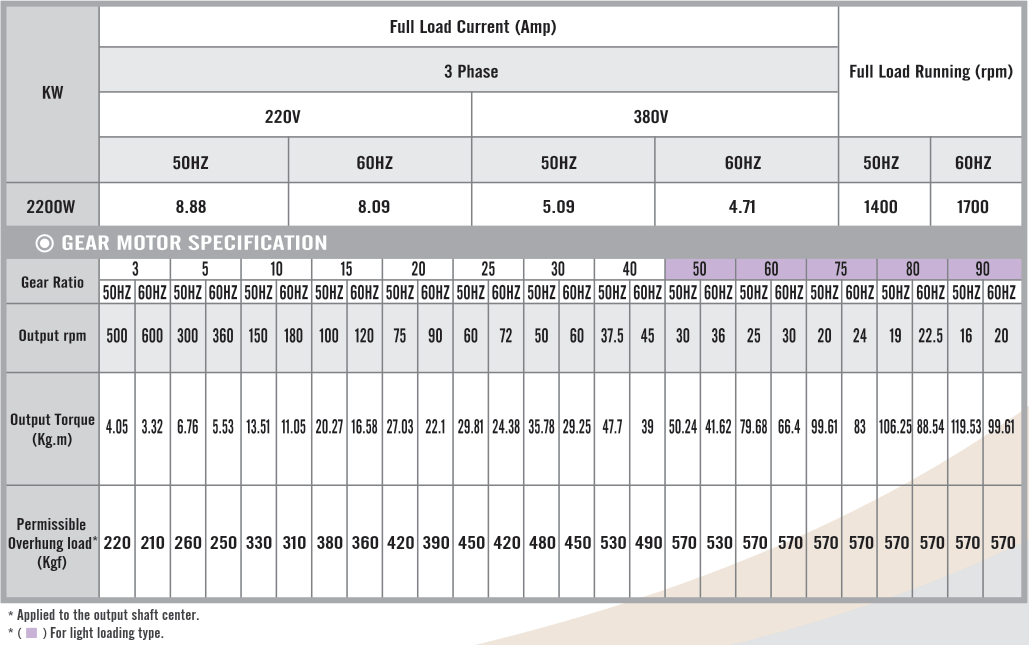

g15h2200, output 2.2kw (3 hp)
